Product Type
| Number of Positions | |||
|---|---|---|---|
| Color | Black, Blue, Gray, Orange, Red, Yellow |
||
| Mounting Type | Free Hanging |
||
| Shell Material | PC |
||
| Wire Gauge | 10/12AWG, 6AWG, 8AWG |
||
| Number of Positions | Color | Black, Blue, Gray, Orange, Red, Yellow |
|
| Mounting Type | Free Hanging |
Shell Material | PC |
| Wire Gauge | 10/12AWG, 6AWG, 8AWG |
Electrical Characteristics
| Rated Current | |||
|---|---|---|---|
| Rated Voltage | 600V |
||
| Contact Resistance | <500μΩ |
||
| Insulation Resistance | |||
| Rated Current | Rated Voltage | 600V |
|
| Contact Resistance | <500μΩ |
Insulation Resistance |
Contact Type
| Contact Finish | Silver Plating |
||
|---|---|---|---|
| Contact Material | T2 |
||
| Contact Termination | Crimp |
||
| Contact Finish | Silver Plating |
Contact Material | T2 |
| Contact Termination | Crimp |
Mechanical Characteristics
| Mating Cycles | ≥10000 |
|---|---|
| Mating Cycles | ≥10000 |
Environmental Characteristics
| Flammability | V0 |
||
|---|---|---|---|
| Operating Temperature | -20℃~+105℃ |
||
| Flammability | V0 |
Operating Temperature | -20℃~+105℃ |

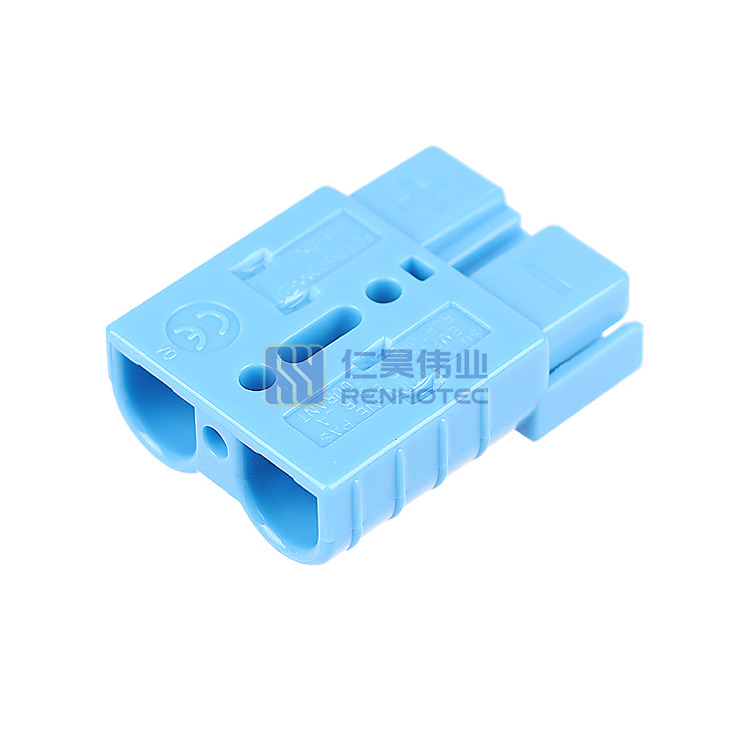

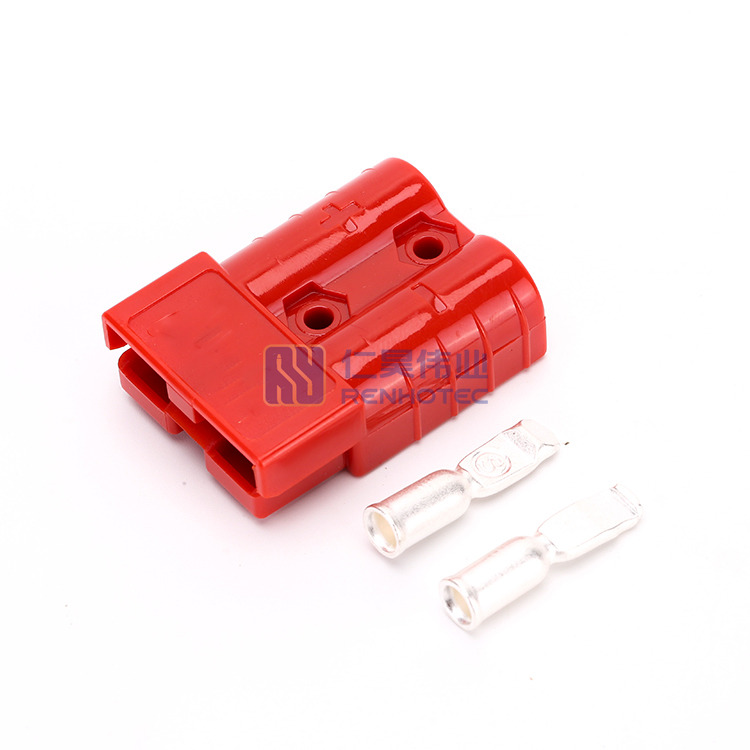

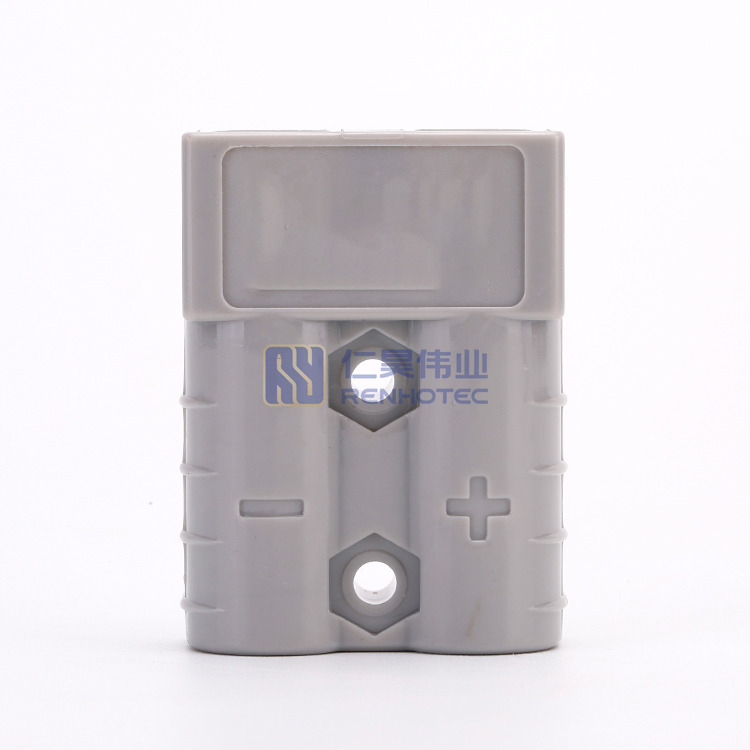

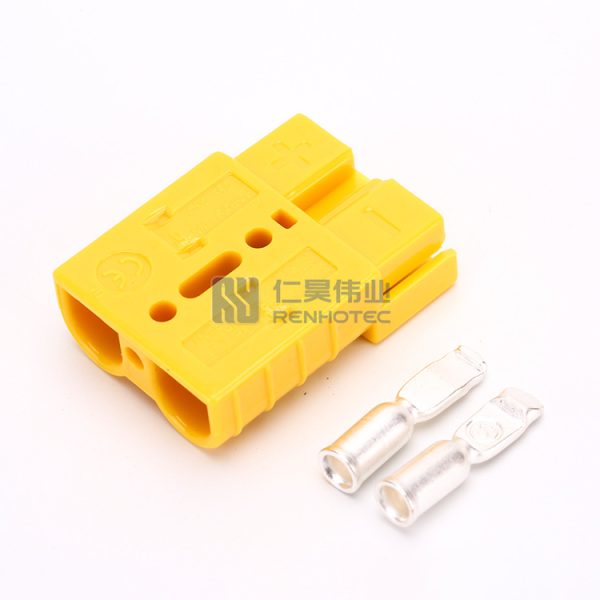

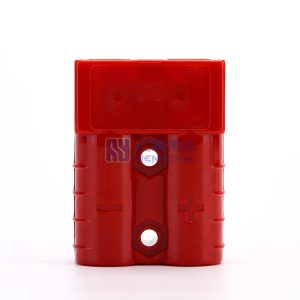

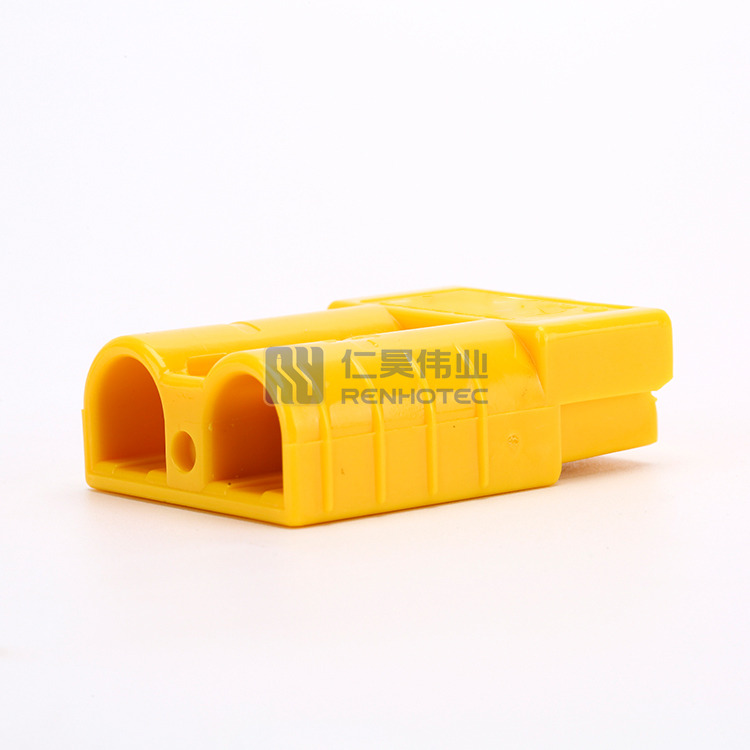

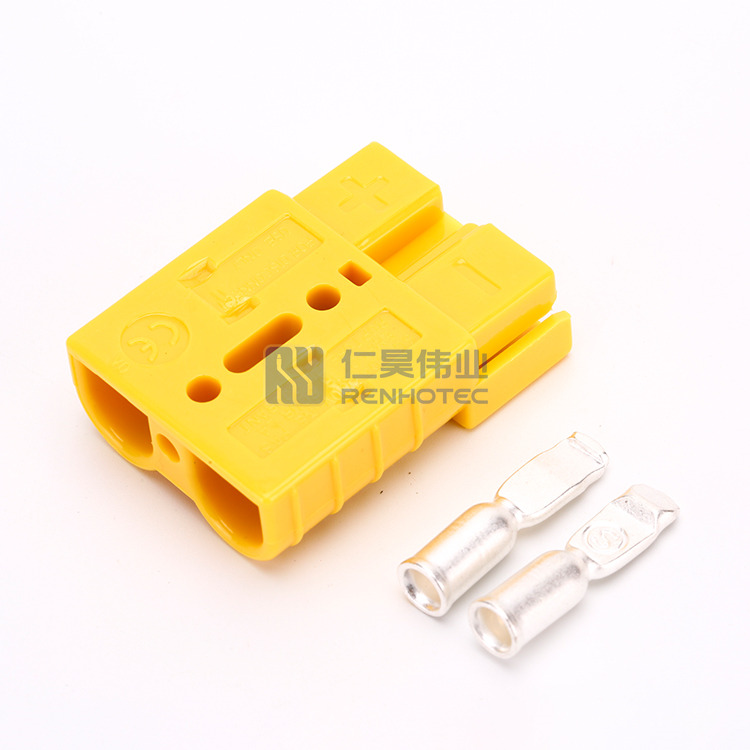

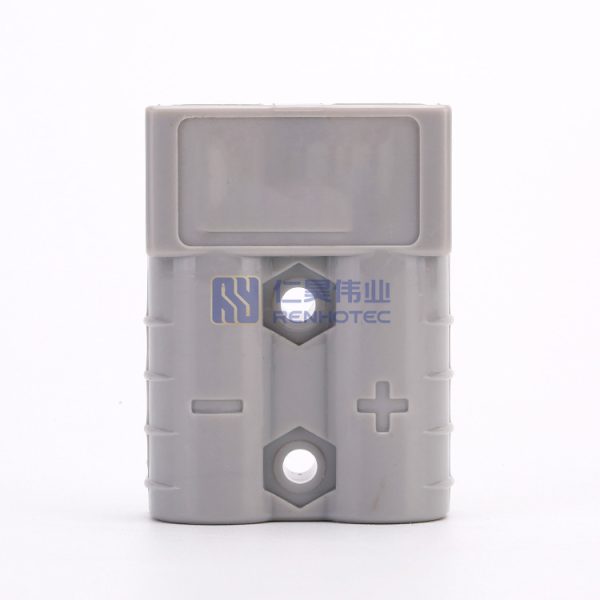

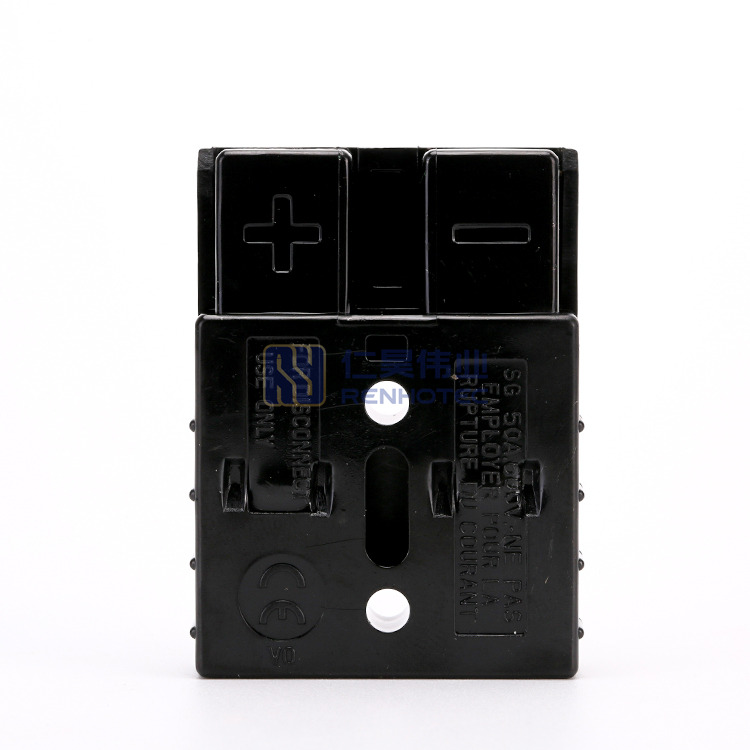

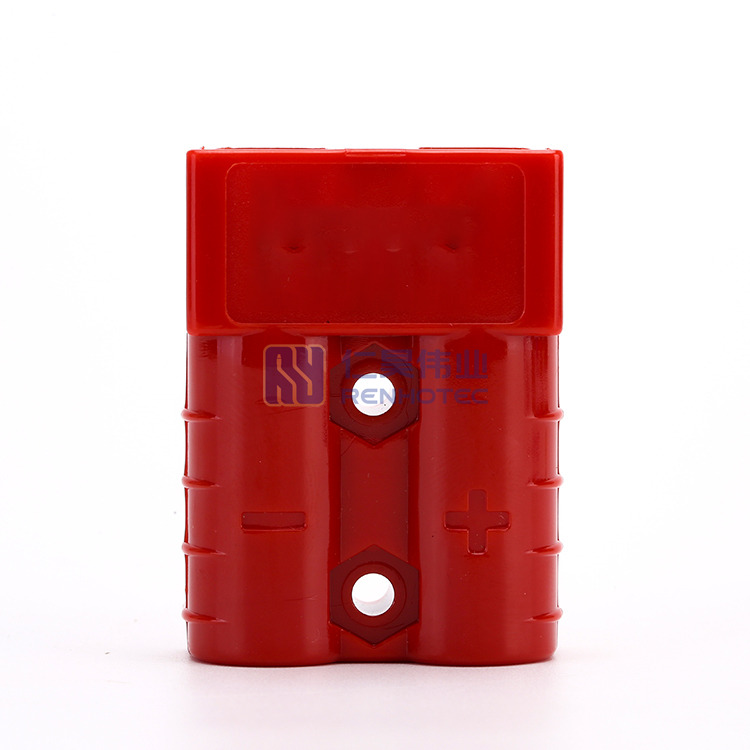

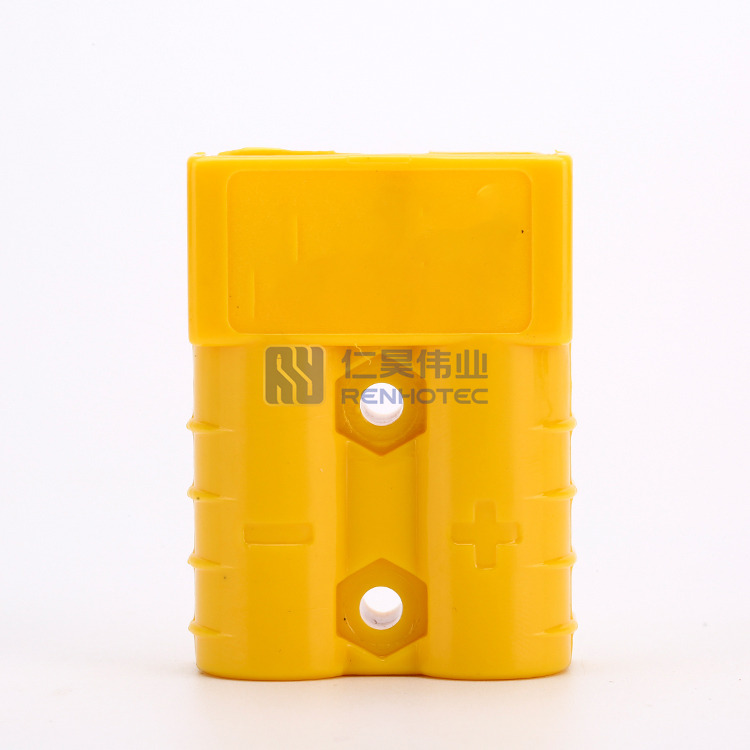

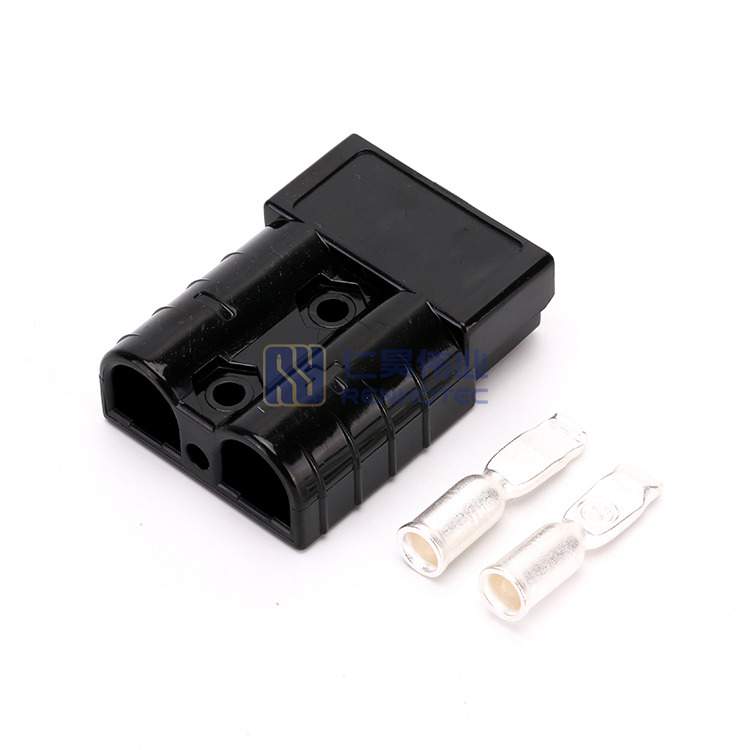

The forklift battery connector housings are available in different colors. They have a mechanical key molded into the connector housing to prevent accidental mating of the 2 different colors. Electric forklifts and other types of electric vehicles generally use these battery connectors. Such as material handling equipment, ground support vehicles, and golf carts. Built out of impact-resistant polycarbonate, these power connectors offer both high physical strength and superior dielectric properties.
Product dimension
Applications
