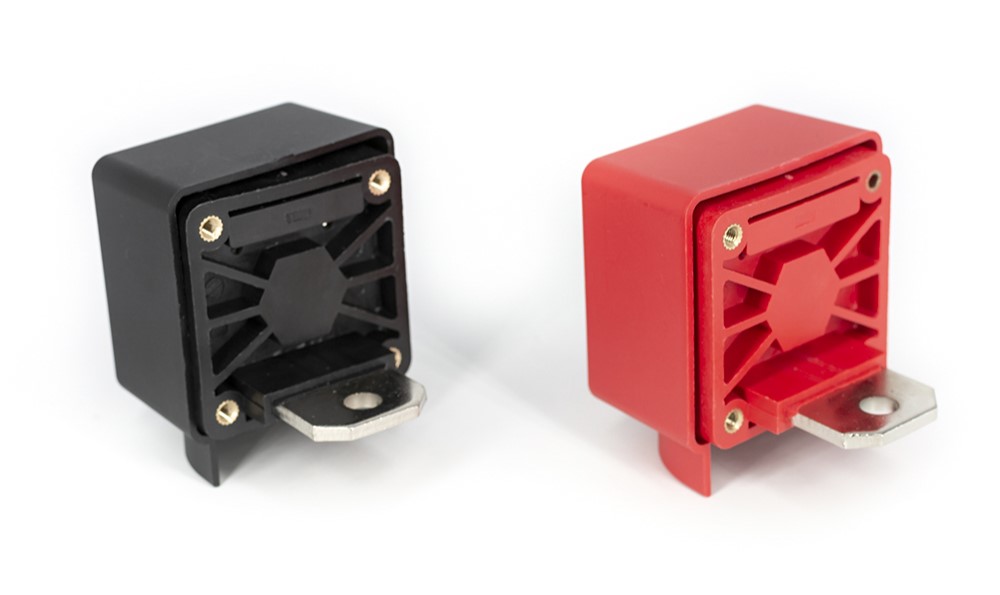

Product Type
| Body Style | Square |
||
|---|---|---|---|
| Mounting Type | Panel Mount |
||
| Mounting Feature | Bulkhead |
||
| Insulation Material | Thermoplastic |
||
| Color | Black |
||
| Wire Gauge | 25m㎡, 70m㎡ |
||
| Body Style | Square |
Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead |
Insulation Material | Thermoplastic |
| Color | Black |
Wire Gauge | 25m㎡, 70m㎡ |
Electrical Characteristics
| Rated Voltage | 1500V |
||
|---|---|---|---|
| Rated Current | |||
| Test Voltage | 4000V AC |
||
| Insulation Resistance | |||
| Rated Voltage | 1500V |
Rated Current | |
| Test Voltage | 4000V AC |
Insulation Resistance |
Mechanical Characteristics
| Termination Thread | M8 |
||
|---|---|---|---|
| Mating Cycles | 100 |
||
| Termination Thread | M8 |
Mating Cycles | 100 |
Contact Type
| Contact Termination | Busbar, Screw |
||
|---|---|---|---|
| Contact Material | Stannum plating on copper alloy |
||
| Contact Finish | Tin Plating |
||
| Contact Termination | Busbar, Screw |
Contact Material | Stannum plating on copper alloy |
| Contact Finish | Tin Plating |
Environmental Characteristics
| Ingress Protection | IP55, IP68 |
||
|---|---|---|---|
| Operating Temperature | -40℃~125℃ |
||
| Flammability | UL94 V-0 |
||
| Salt Spray Resistance | 48H (Mating State) |
||
| Ingress Protection | IP55, IP68 |
Operating Temperature | -40℃~125℃ |
| Flammability | UL94 V-0 |
Salt Spray Resistance | 48H (Mating State) |

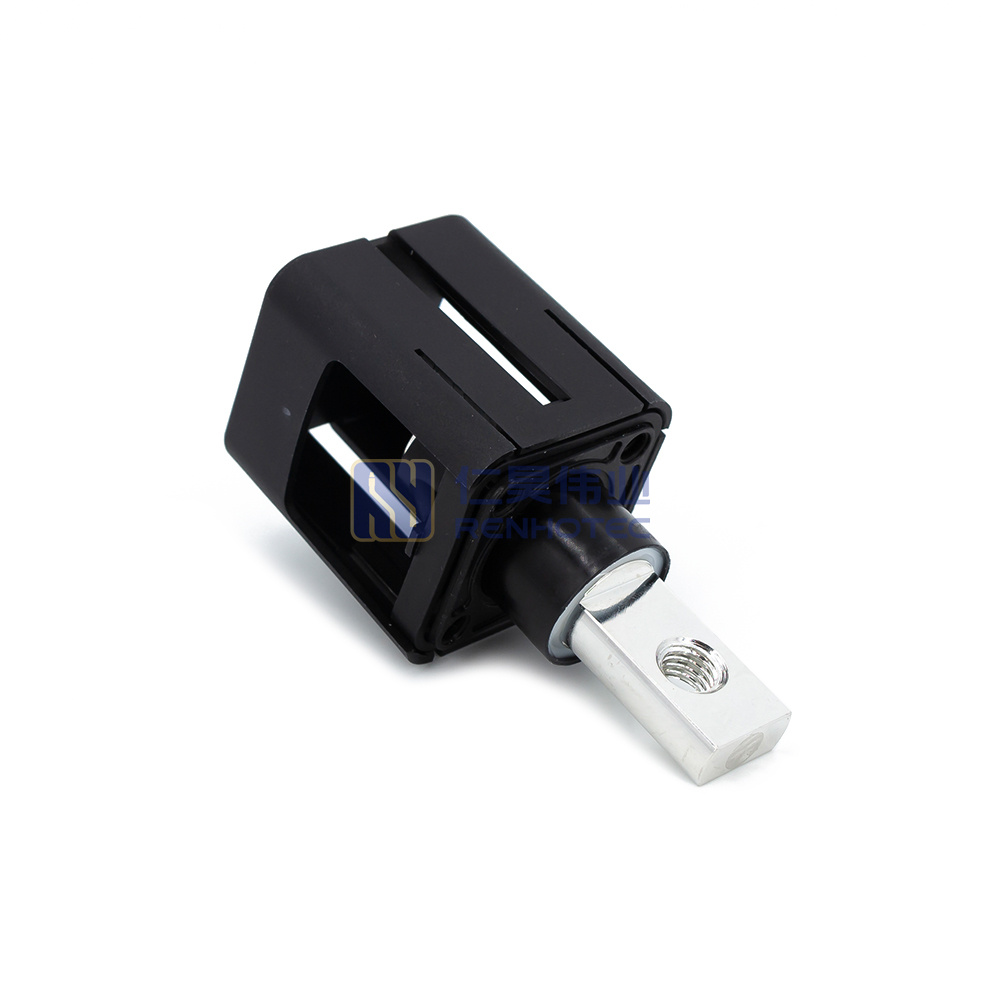

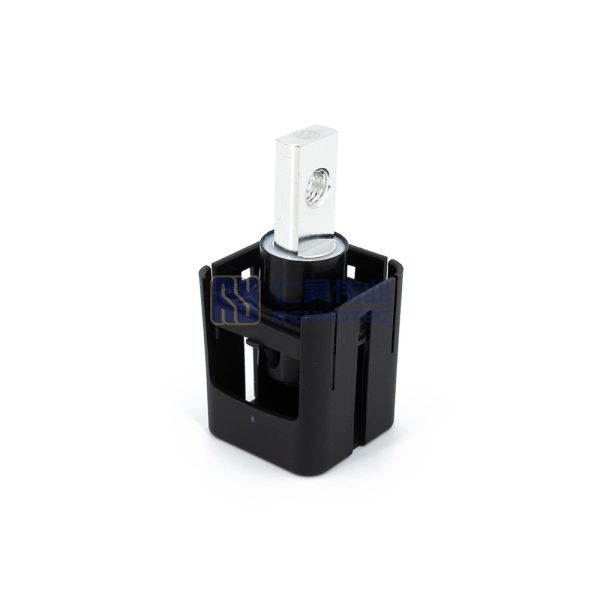

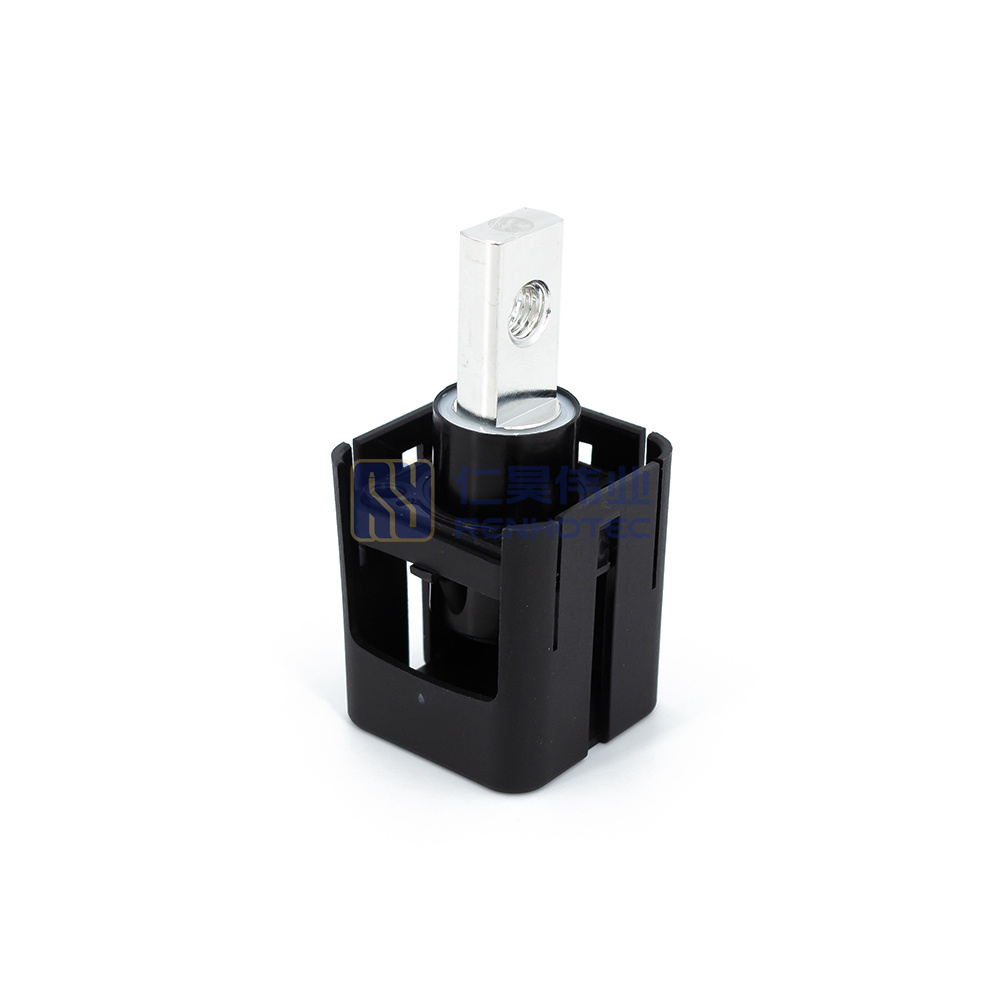

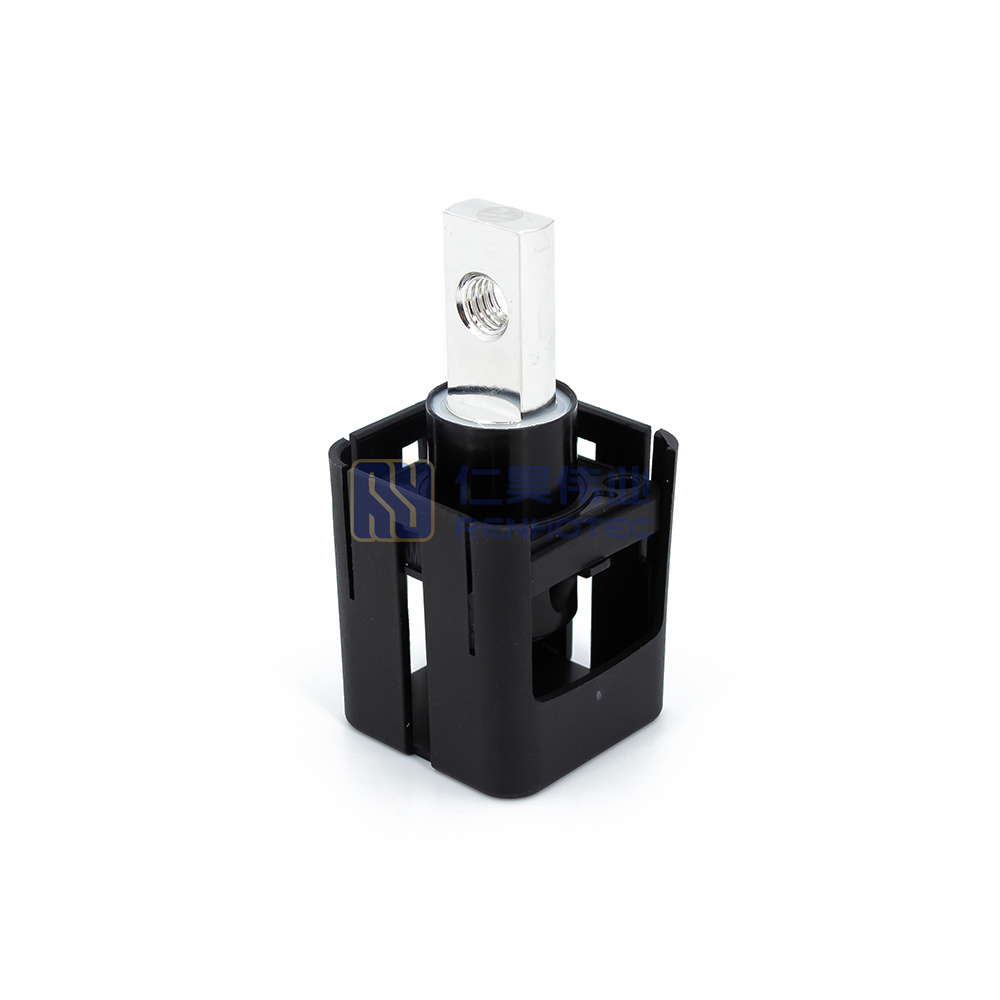

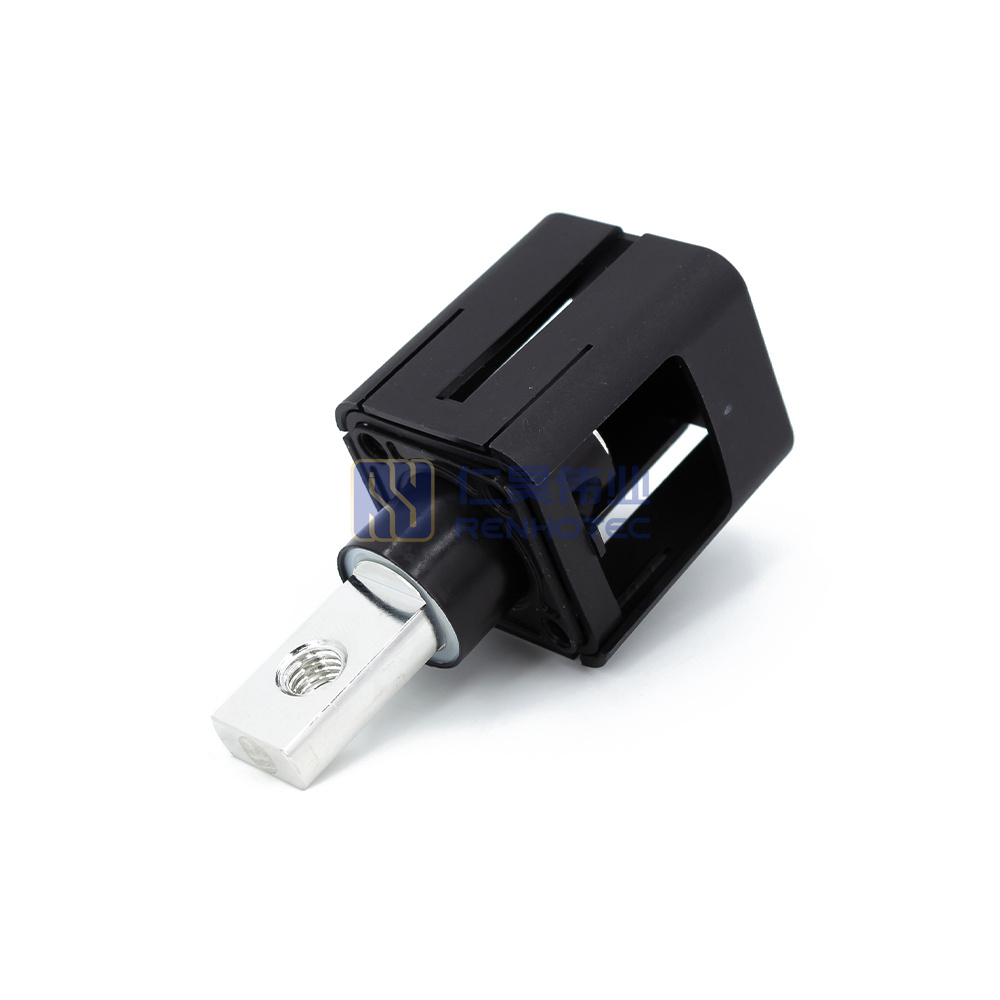

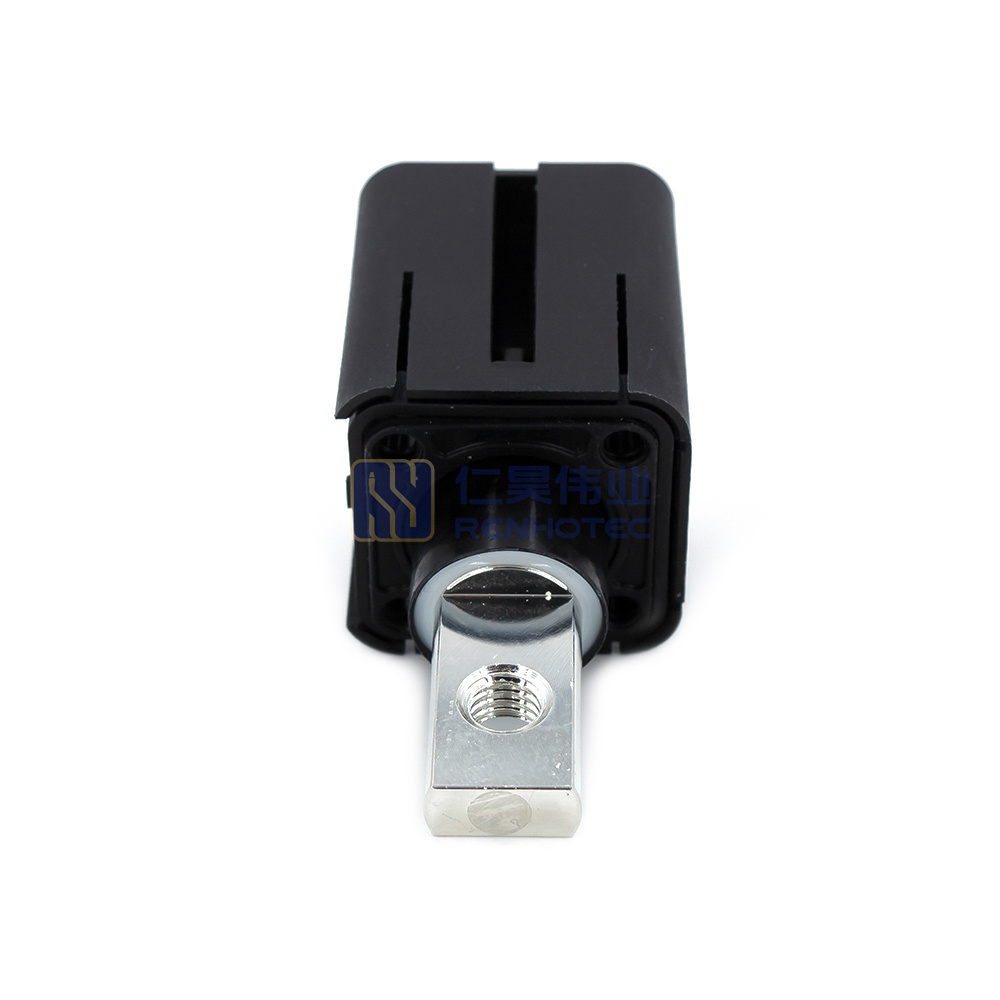

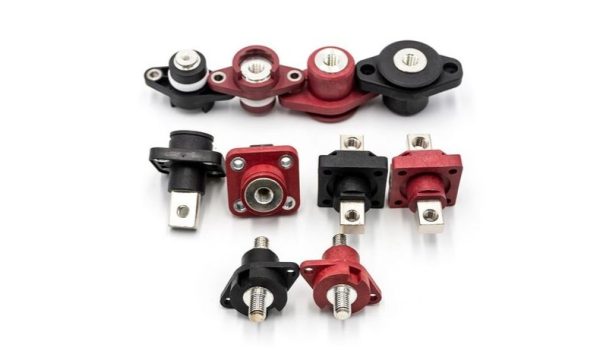

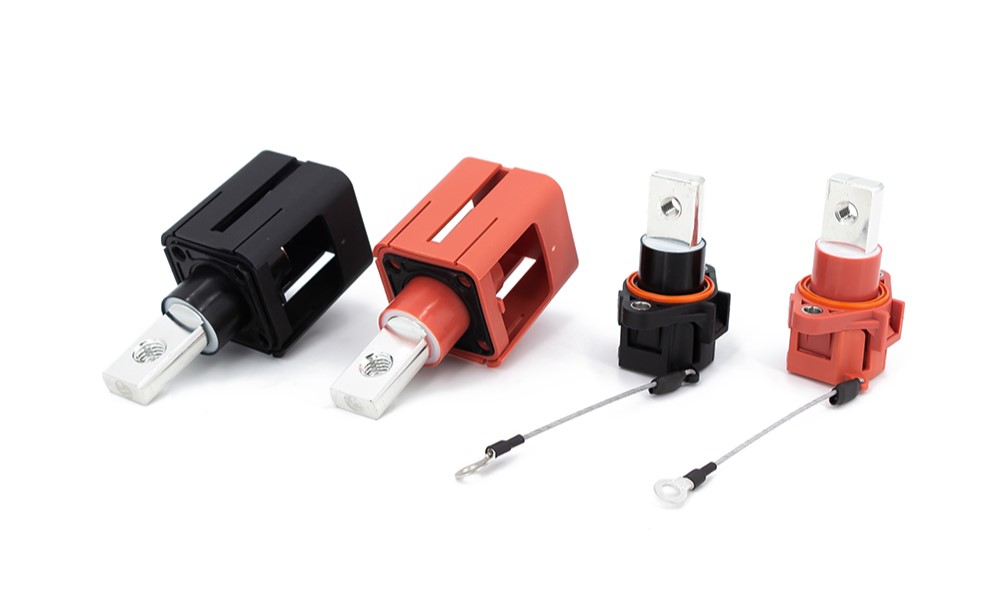

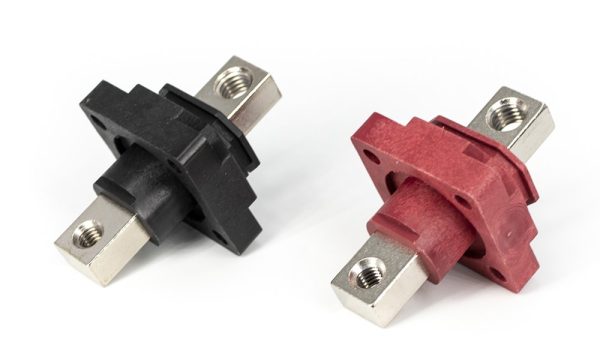

The Square Terminal refers to the posts used to connect wires on ammeters, voltmeters, and resistance meters. The terminal blocks are made of environmentally friendly materials, which can reduce impact and avoid falling over time. Professional manufacturing, stable performance and high reliability.
The product adopts a Thermoplastic flame-retardant material shell. It is insulating and flame retardant. The conductive parts are made of brass, which has strong conductivity and is not easy to overheat. The terminal connectors are made of copper, a high-quality material that can ensure the durability and stability of the product so that it can be used for a long time.

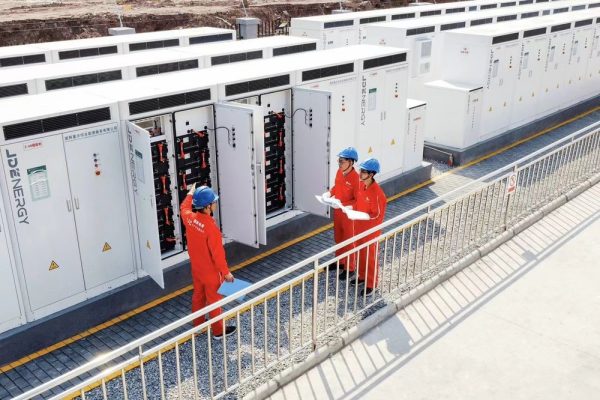

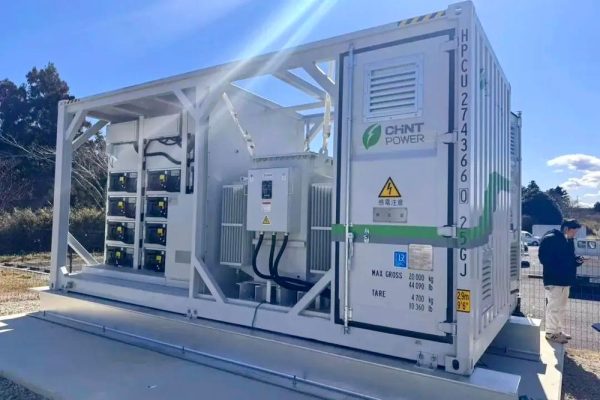

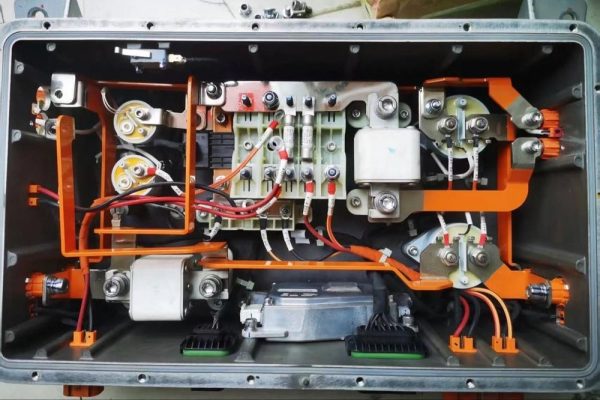

Application Scenarios
