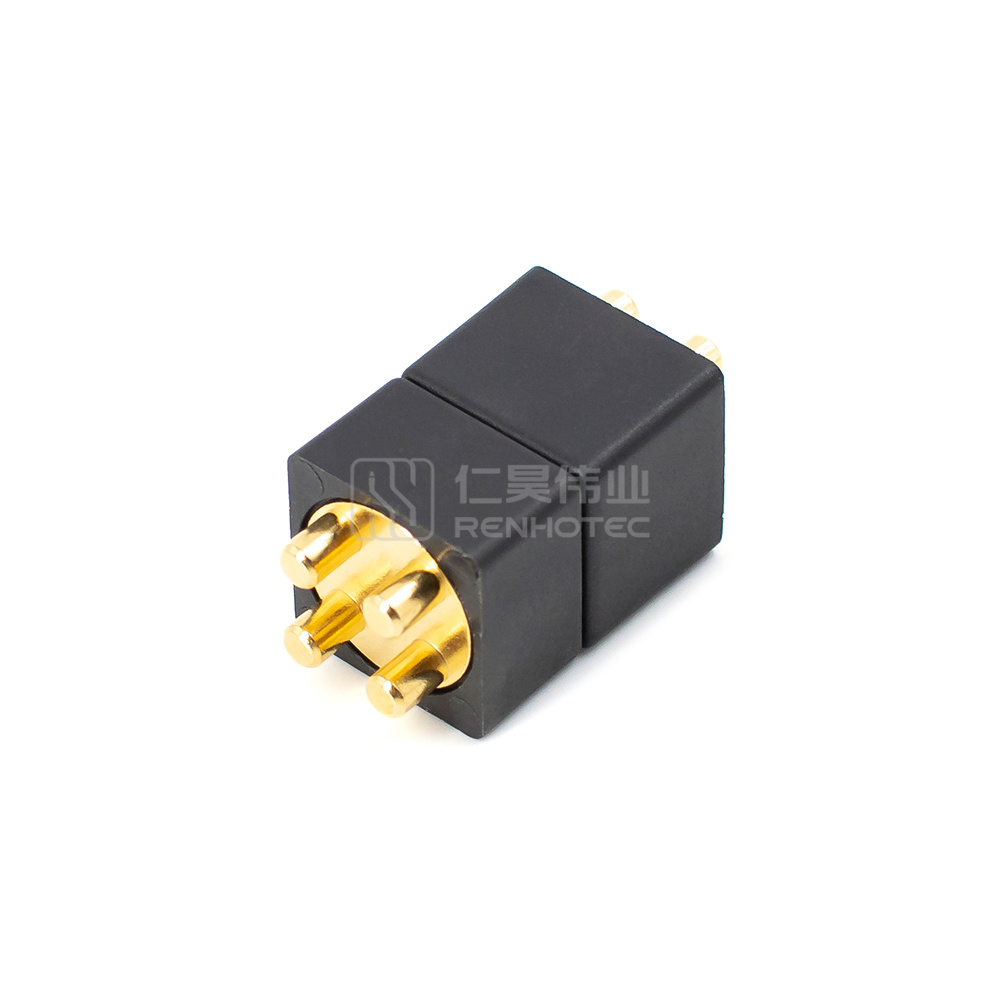

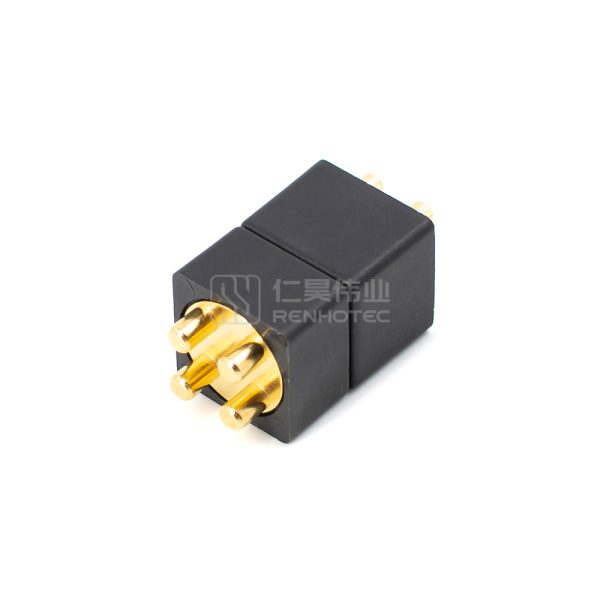

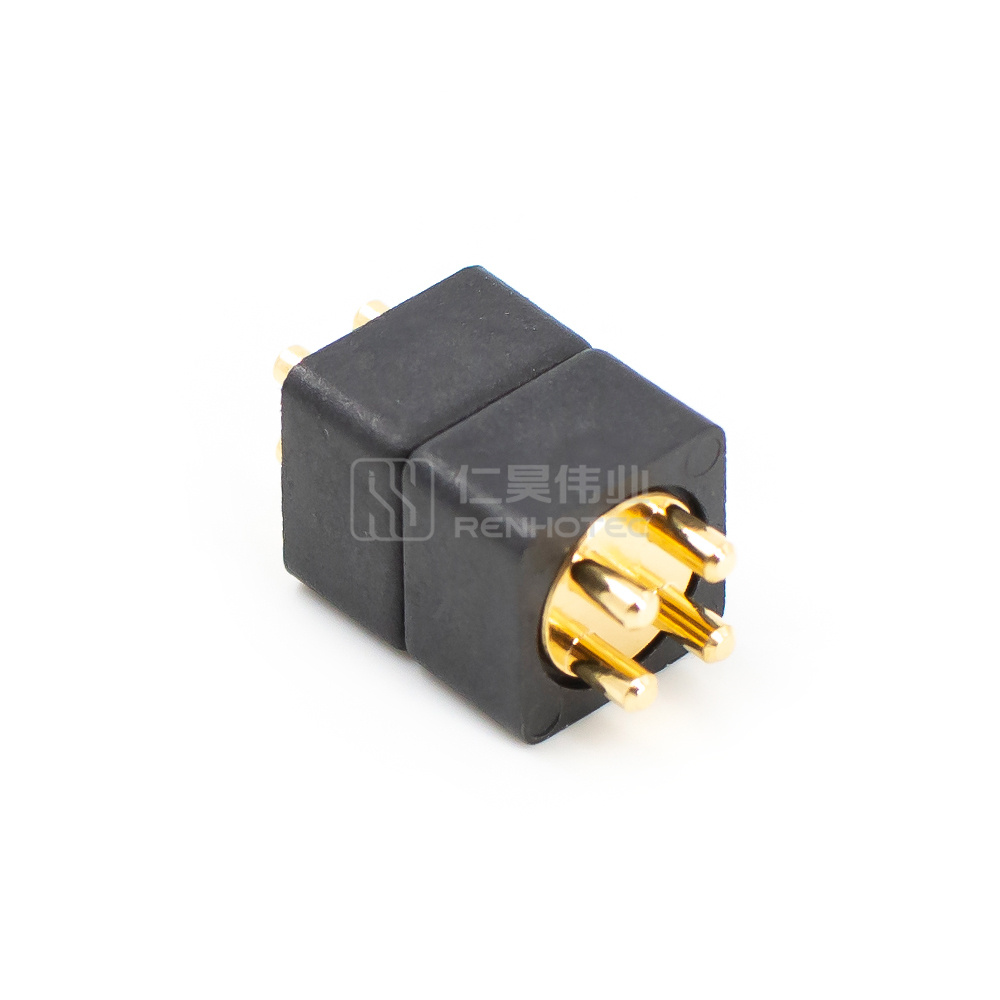

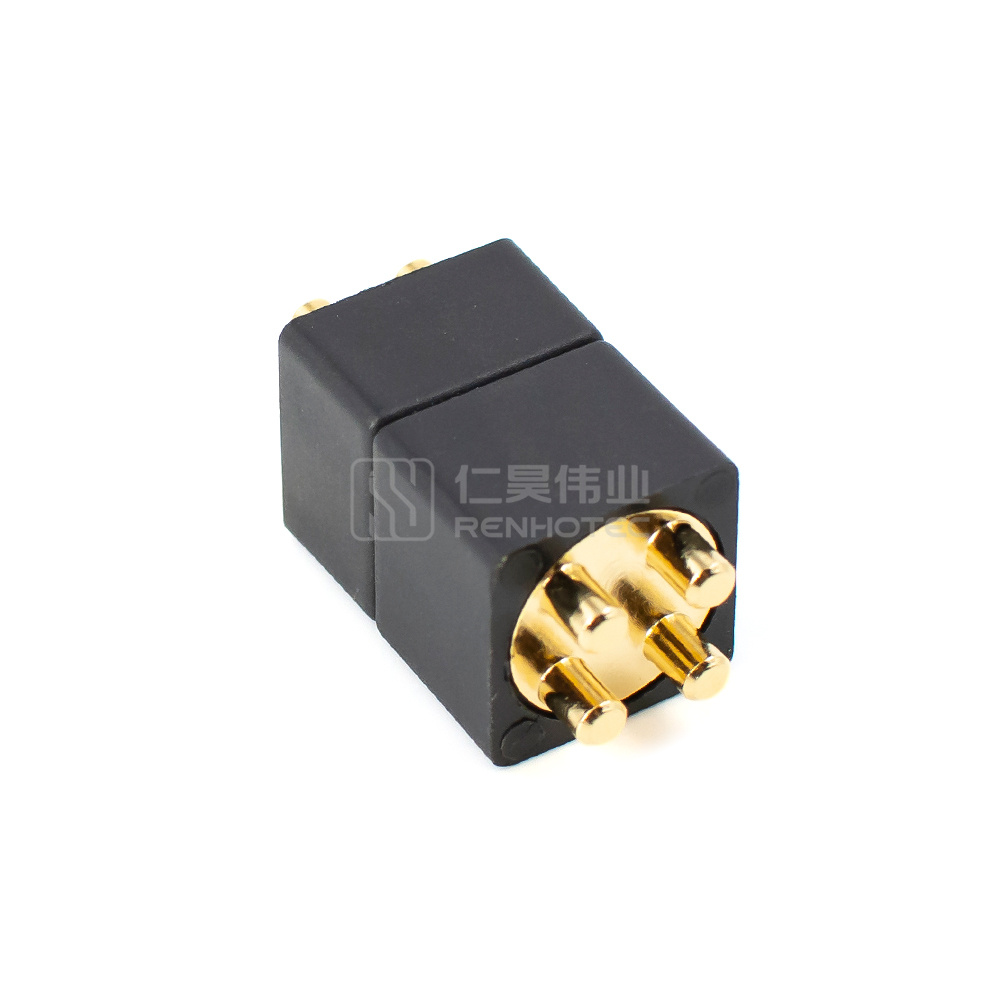

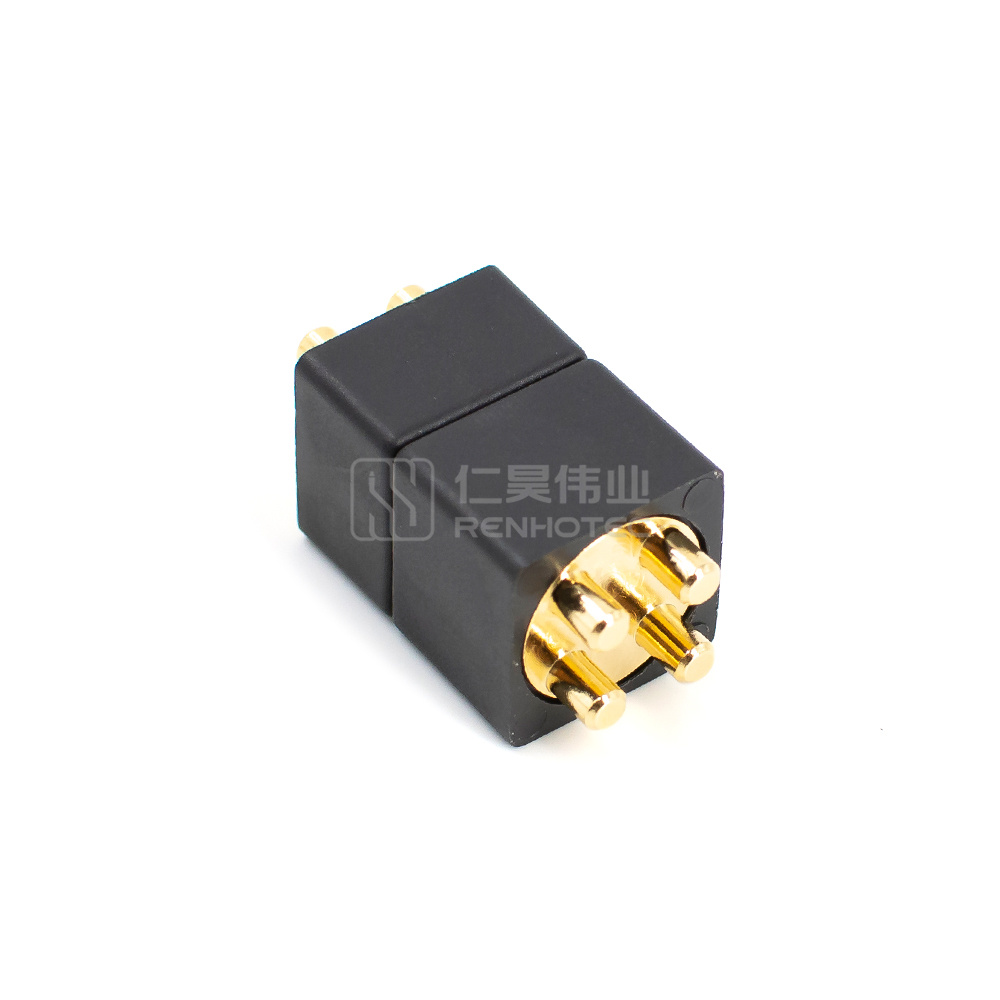

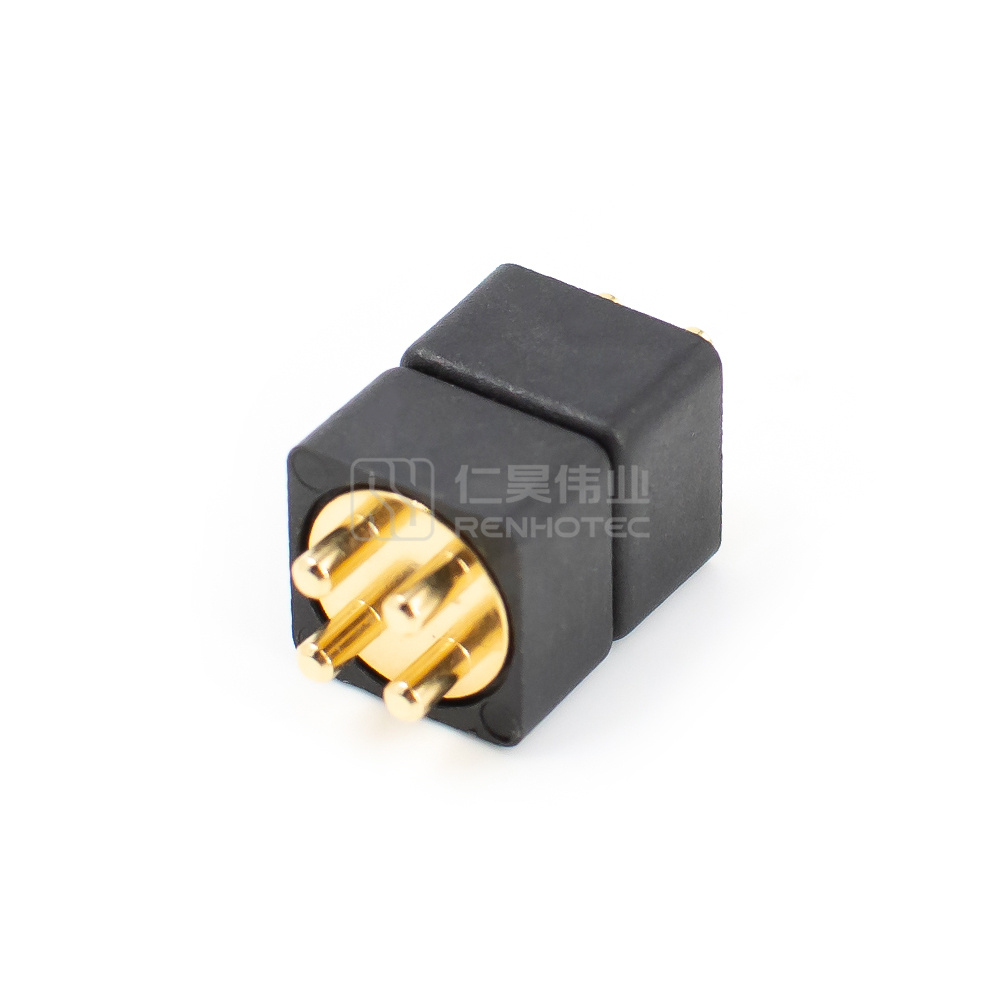

Floating Board to Board Connector
Product Description
Board to board connection device in the processing and assembly process due to manufacturing tolerances caused bythe eccentric, connecting device based on which the contact area is too small the contact point of the current density istoo large, local heating caused by high temperature burning, PCBA and electronic components.
In order to solve the need of large current connection between board and board and the technical problem of automaticcentering of connecting device, we have developed floating Board to Board connector. The connecting device adopts a spring contact finger to realize multi-point contact, and can automatically float the centering and reduce thelocal current density.
| Rated Current | 20A |
|---|---|
| Pin Diameter | 3mm |
| Connector Type | Plug / Socket |
| Orientation | Straight |
| Number of Positions | 1P |
| Number of Soldering Legs | 4 Legs |
| Mounting Type | PCB – through hole (DIP) |
| Contact Termination | Solder |
| Shell Material | Black PA46 |
| Spring Material & Finish | Beryllium bronze with gold plating |
| Contact Material | Brass H59 with gold plating |
| Contact Finish | Gold plating |
| Contact Resistance | 0.2-0.5mΩ |
| Temperature Range | -40℃~125℃ |
| Temperature Rise | Max 50K |
| Mechanical Life | 10000 Times |
Products Feature
- *Floading and Multi-point contact, Small contact resistance, low temperature rise, highlife cycles.
- *Eliminate misalignment and facilitate PCBconnector assembly.
- *Flexible design, a single PCB canaccommodate multiple board-to-boardconnectors.
- *Decrease physical strength to achievereliable PCB interconnect.
The floating pin is realized moving around onthe axial canted coil spring, the floating offsetrealizes the automatic centering, the axialcanted coil spring and canted coil spring torealize multi-point contact, thereby ensuringreliable connection.
