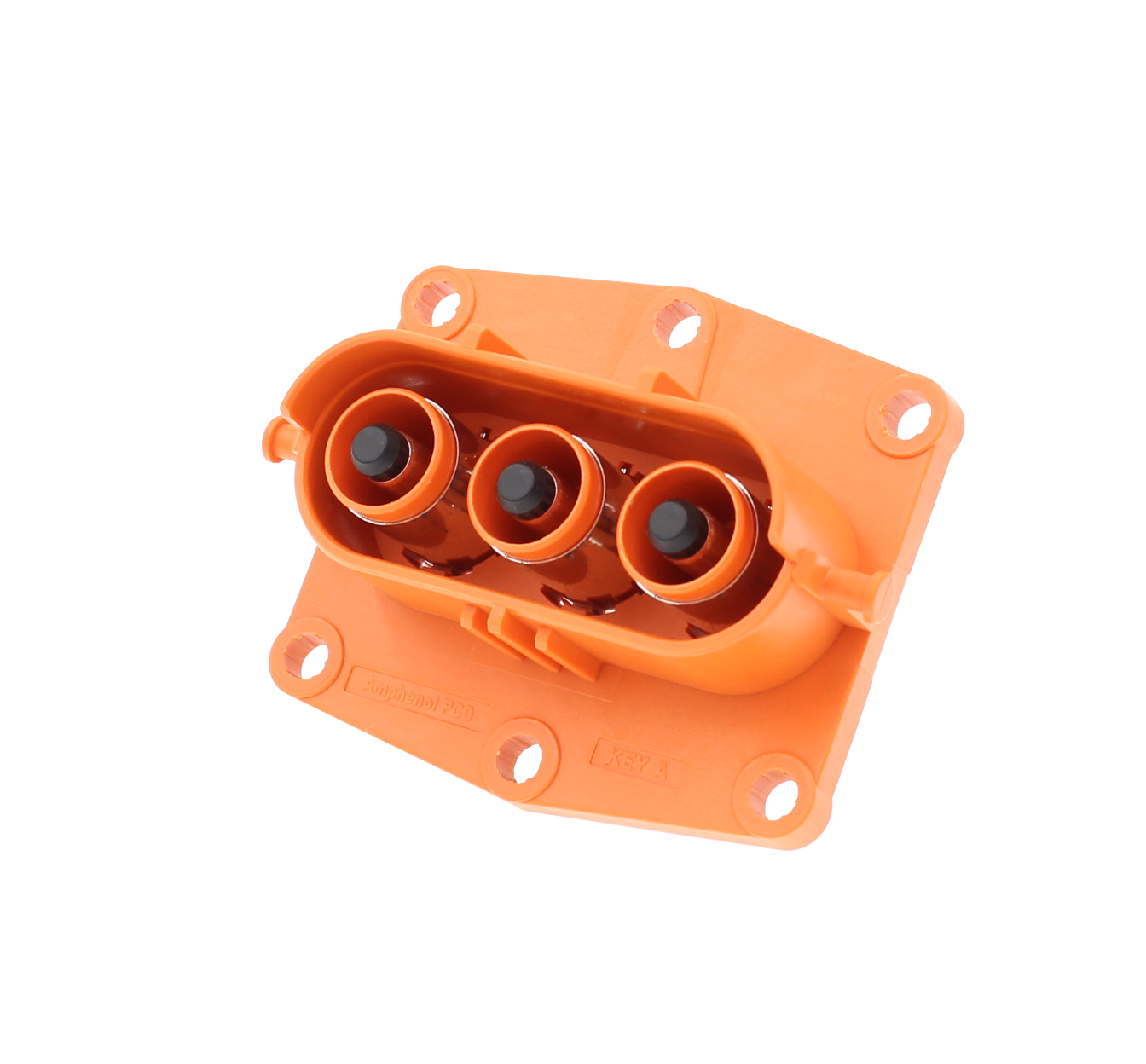

Product Type
| Connector Type | |||
|---|---|---|---|
| Orientation | |||
| Number of Positions | |||
| Terminal | 8mm |
||
| Key | A |
||
| Mounting Type | Panel Mount |
||
| Shell Material | PA66+GF |
||
| Features | Waterproof |
||
| Connector Type | Orientation | ||
| Number of Positions | Terminal | 8mm |
|
| Key | A |
Mounting Type | Panel Mount |
| Shell Material | PA66+GF |
Features | Waterproof |
Contact Type
| Contact Termination | Busbar |
||
|---|---|---|---|
| Contact Material | Copper Alloy |
||
| Contact Finish | Silver Plating |
||
| Contact Termination | Busbar |
Contact Material | Copper Alloy |
| Contact Finish | Silver Plating |
Electrical Characteristics
| Rated Current | |||
|---|---|---|---|
| Rated Voltage | 1500V |
||
| Rated Current | Rated Voltage | 1500V |
Environmental Characteristics
| Ingress Protection | IP67 |
||
|---|---|---|---|
| Flammability | UL94 V-0 |
||
| Operating Temperature | -40℃~125℃ |
||
| Ingress Protection | IP67 |
Flammability | UL94 V-0 |
| Operating Temperature | -40℃~125℃ |
HVIL, or high-voltage interlock loop, is a safety feature of hybrid and all-electric vehicles that protects people during the assembly, repair, maintenance and operation of a vehicle. The HVIL system is in place to protect those who may come into contact with high-voltage components at any stage of the electric vehicle lifecycle. HVIL acts as a circuit breaker that sends an alert or trouble code to the driver if a high-voltage connection becomes loose, disconnected or damaged during the vehicle’s operation. It also helps protect a vehicle’s driver and passengers in the event of an accident.
HVIL connector consists of a plug wrench with a card slot, a secondary lock with a guide slot and a high-voltage interlock microswitch to form an interlock mechanism. High-voltage interlock connectors include solutions for high-voltage, high-current, and signal connections for hybrid and electric vehicle high-voltage power harnesses and signal connections. It is available in a wide range of product options, 1 core to 3 cores, rated from 23A to 250A, touch resistant, single or multi-core shielded cables are available.
Applications
High Voltage Power Distribution, Battery Pack, Motor Controller, Electric Air Conditioning, Electric Heater, etc…
