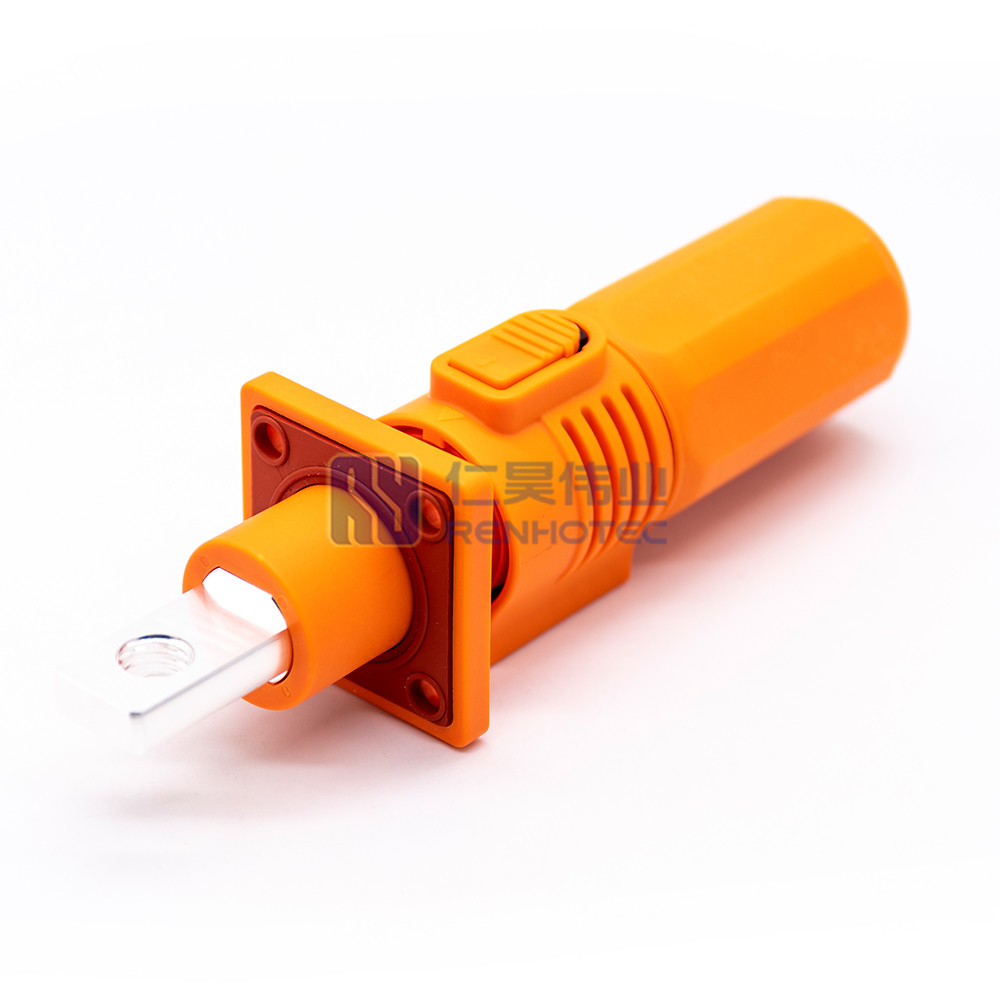

Product Type
| Connector Type | |||
|---|---|---|---|
| Orientation | |||
| Color | Orange |
||
| Terminal | 8mm |
||
| Wire Gauge | 50mm² |
||
| Mounting Type | Cable Mount |
||
| Shell Material | Nylon |
||
| Key | Z |
||
| Connector Type | Orientation | ||
| Color | Orange |
Terminal | 8mm |
| Wire Gauge | 50mm² |
Mounting Type | Cable Mount |
| Shell Material | Nylon |
Key | Z |
Electrical Characteristics
| Rated Current | |||
|---|---|---|---|
| Rated Voltage | 1000V |
||
| Rated Current | Rated Voltage | 1000V |
Contact Type
| Contact Termination | Crimp |
||
|---|---|---|---|
| Contact Material | T2 |
||
| Contact Finish | Silver Plating |
||
| Contact Termination | Crimp |
Contact Material | T2 |
| Contact Finish | Silver Plating |
Environmental Characteristics
| Operating Temperature | -40℃~125℃ |
||
|---|---|---|---|
| Flammability | UL94 V-0 |
||
| Ingress Protection | IP67 |
||
| Operating Temperature | -40℃~125℃ |
Flammability | UL94 V-0 |
| Ingress Protection | IP67 |
The energy storage connectors for professional CAE simulations to meet technical specifications such as plugging force, insulation resistance, dielectric strength, and temperature rise.
These connectors link battery modules in series, enhancing worker safety during ESS installation. Industries such as energy storage, new automotive, and others extensively employ these connectors.
Unique Design
ESS designers can use these connectors in series or individually, depending on specific application requirements. The front of the battery module mounts the battery storage connector, while the back mounts the connector.
The energy storage connectors can be rotated 360 degrees. So they can be adapted to arrange the best angle for heavy cables. They are mechanically coded to prevent polarity reversal and incorrect mating.
Battery storage connectors have a drawer-style slide-in connection that eliminates the need for field wiring. We can extend the modular connection system according to the needs of the application, thus eliminating wiring constraints and allowing higher power distribution.
Application
In the field of energy storage, we use a wide range of energy storage connectors covering a variety of application scenarios such as electric vehicle charging, renewable energy systems, industrial energy storage systems and domestic energy storage systems. Their main function is to provide safe and reliable electrical connections for efficient energy transmission and management.
