Product Type
| Series | FPT18 Series |
||
|---|---|---|---|
| Connector Type | |||
| Orientation | |||
| Mounting Type | Cable Mount |
||
| Wire Range | 0.25mm²~8mm² |
||
| Standard | USCAR-2, UUSCAR37, RoHS, MIL-C-26482 |
||
| Series | FPT18 Series |
Connector Type | |
| Orientation | Mounting Type | Cable Mount |
|
| Wire Range | 0.25mm²~8mm² |
Standard | USCAR-2, UUSCAR37, RoHS, MIL-C-26482 |
Electrical Characteristics
| Rated Current | |||
|---|---|---|---|
| Rated Voltage | 400V-1000V |
||
| Insulation Resistance | |||
| Test Voltage | 2000~3000VDC |
||
| Rated Current | Rated Voltage | 400V-1000V |
|
| Insulation Resistance | Test Voltage | 2000~3000VDC |
Contact Type
| Contact Termination | Crimp |
|---|---|
| Contact Termination | Crimp |
Mechanical Characteristics
| Mating Cycles | 500 Times |
|---|---|
| Mating Cycles | 500 Times |
Environmental Characteristics
| Ingress Protection | IP67 |
||
|---|---|---|---|
| Operating Temperature | -40℃~125℃ |
||
| Salt Spray Resistance | 48H, 72H |
||
| Ingress Protection | IP67 |
Operating Temperature | -40℃~125℃ |
| Salt Spray Resistance | 48H, 72H |

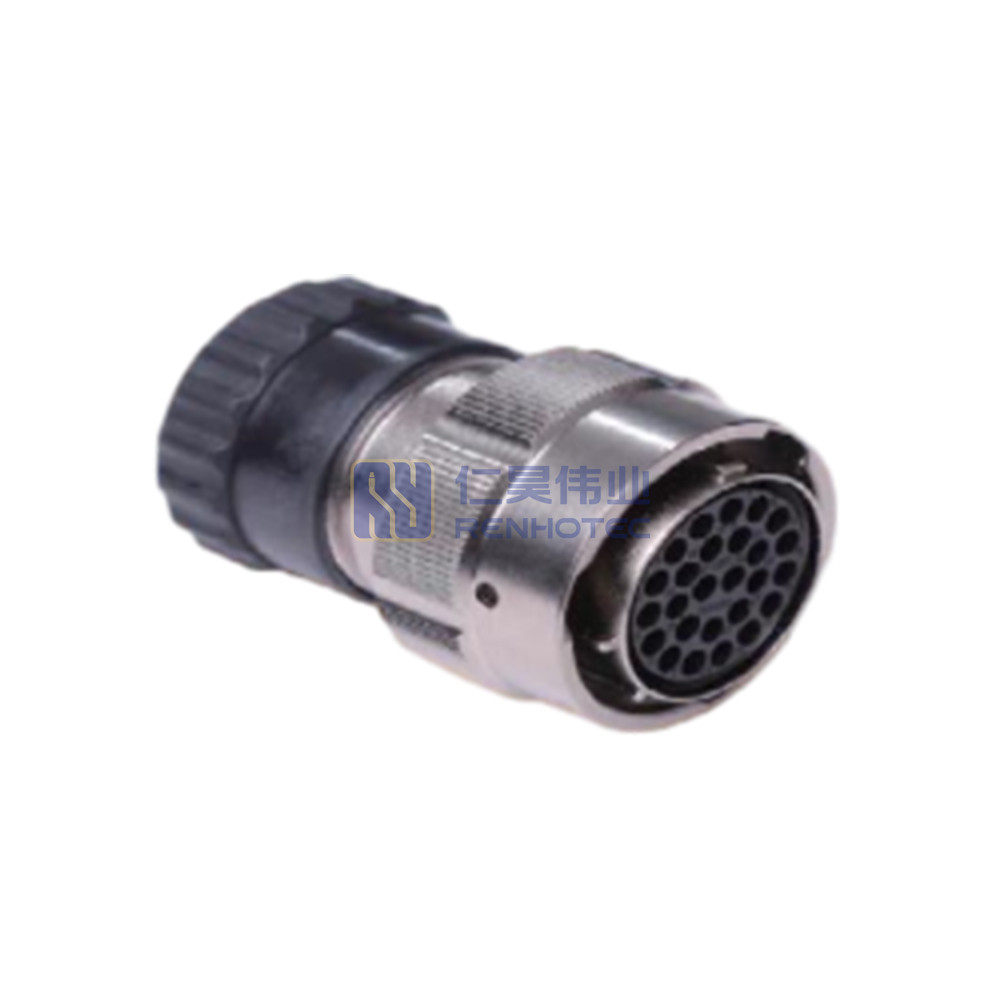

FPT series connection method adopts bayonet connection, contact end connection form is crimped, welded or plate connection. The product has the characteristics of fast connection, good shielding, high sealing, good anti-salt spray performance, strong and reliable structure.
Application
Suitable for aerospace, communications, ships, construction machinery, building customization and control, instrument measurement, energy power, robots, machine tools, telecommunications data infrastructure and other electronic equipment electrical connection.
