Product Type
| Orientation | |||
|---|---|---|---|
| Number of Positions | |||
| Wire Gauge | 25m㎡, 35m㎡, 50m㎡ |
||
| Mounting Type | Cable Mount |
||
| Mounting Feature | Flange |
||
| Key | N |
||
| Shell Material | PA66+GF |
||
| Shielding | Shield |
||
| Color | Orange |
||
| Orientation | Number of Positions | ||
| Wire Gauge | 25m㎡, 35m㎡, 50m㎡ |
Mounting Type | Cable Mount |
| Mounting Feature | Flange |
Key | N |
| Shell Material | PA66+GF |
Shielding | Shield |
| Color | Orange |
Contact Type
| Contact Termination | Crimp |
|---|---|
| Contact Termination | Crimp |
Electrical Characteristics
| Rated Current | |||
|---|---|---|---|
| Rated Voltage | 800V |
||
| Rated Current | Rated Voltage | 800V |
Environmental Characteristics
| Ingress Protection | IP67 |
||
|---|---|---|---|
| Flammability | UL94 V-0 |
||
| Operating Temperature | -40℃~125℃ |
||
| Ingress Protection | IP67 |
Flammability | UL94 V-0 |
| Operating Temperature | -40℃~125℃ |

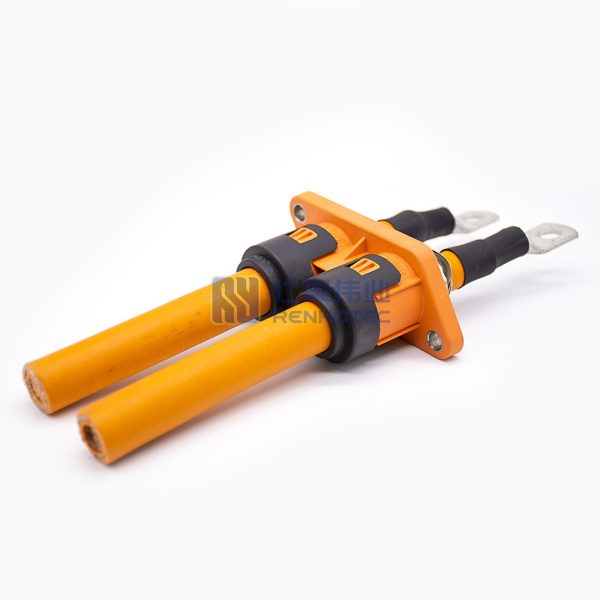

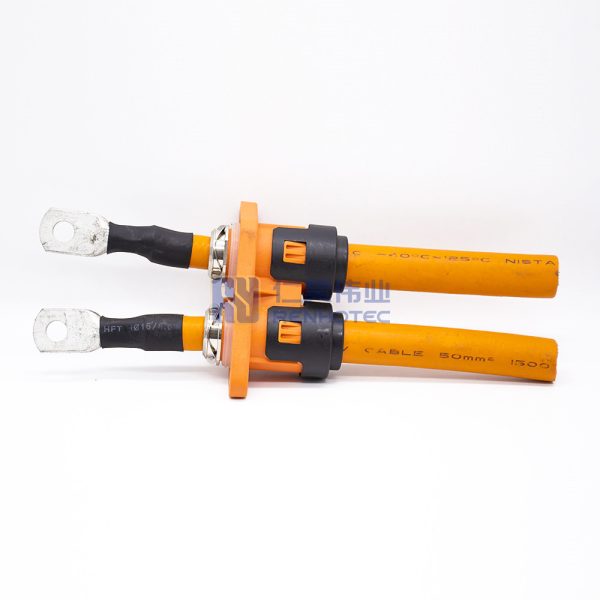

High Voltage PT connector, also known as cable connector, is mainly used in electric vehicle power distribution systems, motors, motor controllers and other parts. It cooperates with cables to play a role of waterproofing and shielding; products are available in 1 pin, 2 pins, and 3 pins. specifications, optional 25/35/50mm² cable.
HVPT Connectors are rated IP67/IP6K9K and provide reliable, cost-effective high voltage connections. These lightweight connectors have a plastic shell, 360° shielding from the wire to the device, and multiple coding positions. The series is rated to 1000VDC, available in 1 to 3 positions, and easy to install. These connectors are ideal for applications requiring high performance and increased safety.
Renhotec (RPT) high voltage internal lock connector provides an economical reliable high voltage connection. The IP67 rated, light weight connectors are rated to 1000V DC and are available in 1 to 3 positions. The series is designed to meet AK standards for various xEV applications, including power and signal interconnect solutions. Renhotec (RPT) are ideal for applications requiring high-performance and increased safety.
