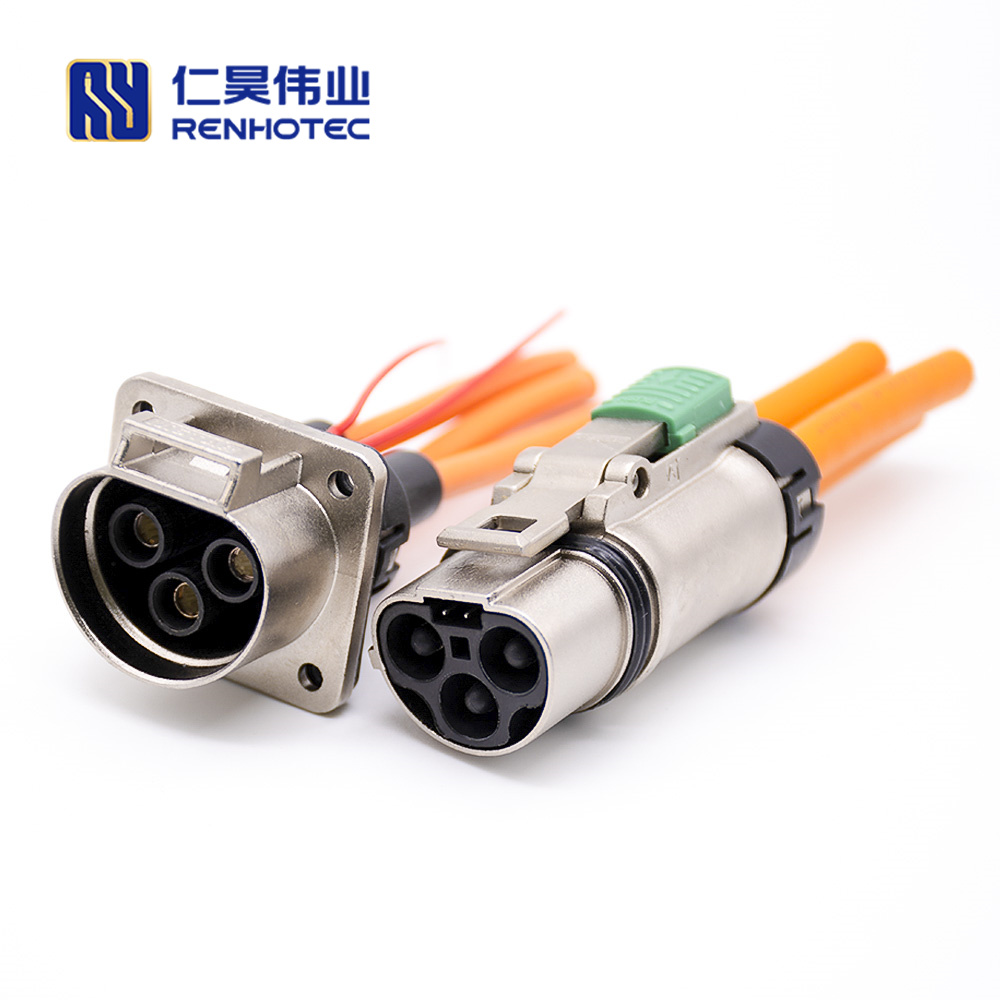

HVIL High Voltage Safety Lock Cable 3.6mm 3 Pin 35A Straight Metal Plug For 6mm² Wire

Артикул: E1-1-S036-3AYN-C05-L0.1 Категория: Метки: , , , , , , , , , ,
  • Excellent Electrical Insulation.
  • Various Wire Diameter Application.
  • Multi Misplug-proof and Key Position Design.
  • Secondary Buckle.
  • Sealing, IP67,Touch-Proof.
  • Multiple Coding Positions.
Get A Quotation

High-voltage interlock (hvil for short), a safe design method that uses low-voltage signals to manage high-voltage circuits. In the high-voltage system design, in order to avoid the arcing caused by the high-voltage connector being opened and closed during the actual operation. The high-voltage connector should generally have the “high-voltage interlock” function.

Connectors with high-voltage interlocks are unlocked when energized. It can be disconnected by a logical sequence of high-voltage interlocks. The disconnection time is related to the difference in the effective contact length between the high-voltage interlock terminal and the power supply terminal. It is related to the speed when disconnected.

Under normal circumstances, the response time of the system to the interlock terminal circuit is between 10 and 100ms. When the disconnection (unplugging) time of the connected system is less than the system response time. There will be a safety risk of live plugging and unplugging. And the second unlocking is in order to solve this disconnection time problem. Under normal circumstances, the secondary unlocking can effectively control the disconnection time above 1s to ensure safe operation.

High voltage interlocks for high voltage electrical circuits such as high voltage connectors, msds and high voltage distribution boxes are commonly available.

Product Type

Connector Type

Orientation

Number of Positions

Terminal

3.6mm

Wire Gauge

6mm²

Shell Material

Zinc Alloy

Cable Length

0.1m

Mounting Type

Cable Mount

Key

A

Connector Type

Orientation

Number of Positions

Terminal

3.6mm

Wire Gauge

6mm²

Shell Material

Zinc Alloy

Cable Length

0.1m

Mounting Type

Cable Mount

Key

A

Electrical Characteristics

Rated Current

Rated Current

Environmental Characteristics

Ingress Protection

IP67

Ingress Protection

IP67

Connector Type

Orientation

Number of Positions

Terminal

3.6mm

Rated Current

Wire Gauge

6mm²

Shell Material

Zinc Alloy

Cable Length

0.1m

Mounting Type

Cable Mount

Key

A

Ingress Protection

IP67

Check out the attachment for the product catalog of the High Voltage Interlock Connector.



High Voltage Interlock Connector Catalog.PDF
