Product Type
| Connector Type | |||
|---|---|---|---|
| Rated Type | DC |
||
| Power Phase | |||
| Shell Material | Themoplastic |
||
| Connector Type | Rated Type | DC |
|
| Power Phase | Shell Material | Themoplastic |
Electrical Characteristics
| Rated Voltage | 1000V |
||
|---|---|---|---|
| Rated Current | |||
| Contact Resistance | 0.5MΩ MAX |
||
| Insulation Resistance | |||
| Operating Voltage | 1000V DC |
||
| Withstand Voltage | 3200V |
||
| Rated Voltage | 1000V |
Rated Current | |
| Contact Resistance | 0.5MΩ MAX |
Insulation Resistance | |
| Operating Voltage | 1000V DC |
Withstand Voltage | 3200V |
Contact Type
| Contact Finish | Silver Plating |
||
|---|---|---|---|
| Contact Material | Copper Alloy |
||
| Contact Finish | Silver Plating |
Contact Material | Copper Alloy |
Standards and Specifications
| Charging Standards | IEC 62196-3 |
|---|---|
| Charging Standards | IEC 62196-3 |
Environmental Characteristics
| Ingress Protection | IP65 |
||
|---|---|---|---|
| Flammability | UL94 V-0 |
||
| Operating Temperature | -30℃~50℃ |
||
| Ingress Protection | IP65 |
Flammability | UL94 V-0 |
| Operating Temperature | -30℃~50℃ |
Mechanical Characteristics
| Mating Cycles | ≥10000 |
|---|---|
| Mating Cycles | ≥10000 |
Renhotec is a manufacturer specializing in EV charging products. In addition to production, our company has design and r&d departments. Our main products are EV charging stations, EV cables, and EV connectors. Along with the regular products, we also offer product customization services upon request to meet local market preferences and needs.

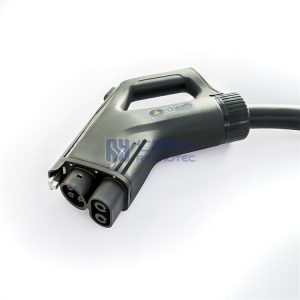

CCS COMBO1 Standard Connector
The Combined Charging System (CCS) is a standard for charging electric vehicles. It can use Combo 1 or Combo 2 connectors to provide power at up to 350 kilowatts. These two connectors are extensions of the IEC 62196 Type 1 and Type 2 connectors, with two additional direct currents (DC) contacts to allow high-power DC fast charging.
The Combined Charging System allows AC charging using the Type 1 and Type 2 connector depending on the geographical region. Since 2014 the European Union has required the provision of Type 2 or Combo 2 within the European electric vehicle charging network. This charging environment encompasses charging couplers, charging communication, charging stations, the electric vehicle, and various functions for the charging process such as load balancing and charge authorization.
Electric vehicles or electric vehicle supply equipment (EVSE) are CCS-capable if they support either AC or DC charging according to the standards listed by the CCS.
CCS Drawing
