Product Example
A rectangular connector usually consists of two parts: a plug and a socket.Both plugs and sockets include many small and precise pins or pins that match the holes on the corresponding sockets or plugs to achieve electrical connection.
Product Description

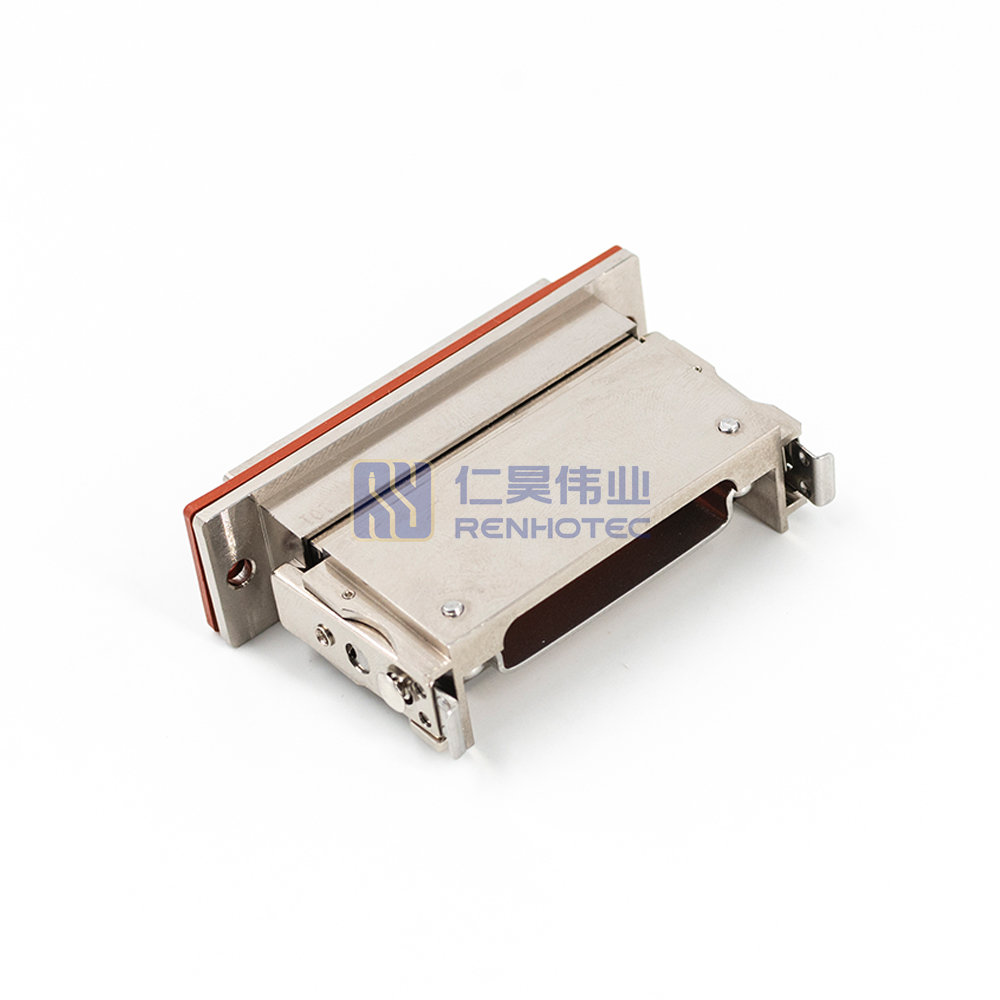

J14A series rectangular products adopt metal shield shell, with wire clamp and locking device, with rounded anti-reverse insert design, small volume and light weight. The product has push-pull type double safety lock unloading mechanism, plug, socket needle installation hole optional.
This series of rectangular electrical connectors implements the detailed specifications of Q/HD20037-2007 and belongs to the low-frequency connector series. It is mainly suitable for medical devices, space satellite systems, launch vehicles, Industrial facilities, and can also be widely used in various electronic instruments, meters and cable connections.
Performance
Contact Layout
The J14A series rectangular connector has 9 pin counts 9/15/20/26/38/51/62/72/101pin
Application
Aerospace
In the electrical systems of spacecraft and aircraft, J14J connectors are used to connect various electronic components such as sensors, control units and power systems.
Harsh Environment
Equipment tested in various harsh environments, such as drought, extreme cold, extreme humidity, dust, etc., ensuring reliable connections for power and signals is critical.
Industry
J14J connectors are widely used in mechatronic equipment to provide reliable connections between electrical and mechanical parts and improve the overall performance of the equipment.
Medical
The J14J connector is suitable for medical instruments such as monitors, diagnostic equipment and surgical equipment to ensure a stable electrical connection between devices.
