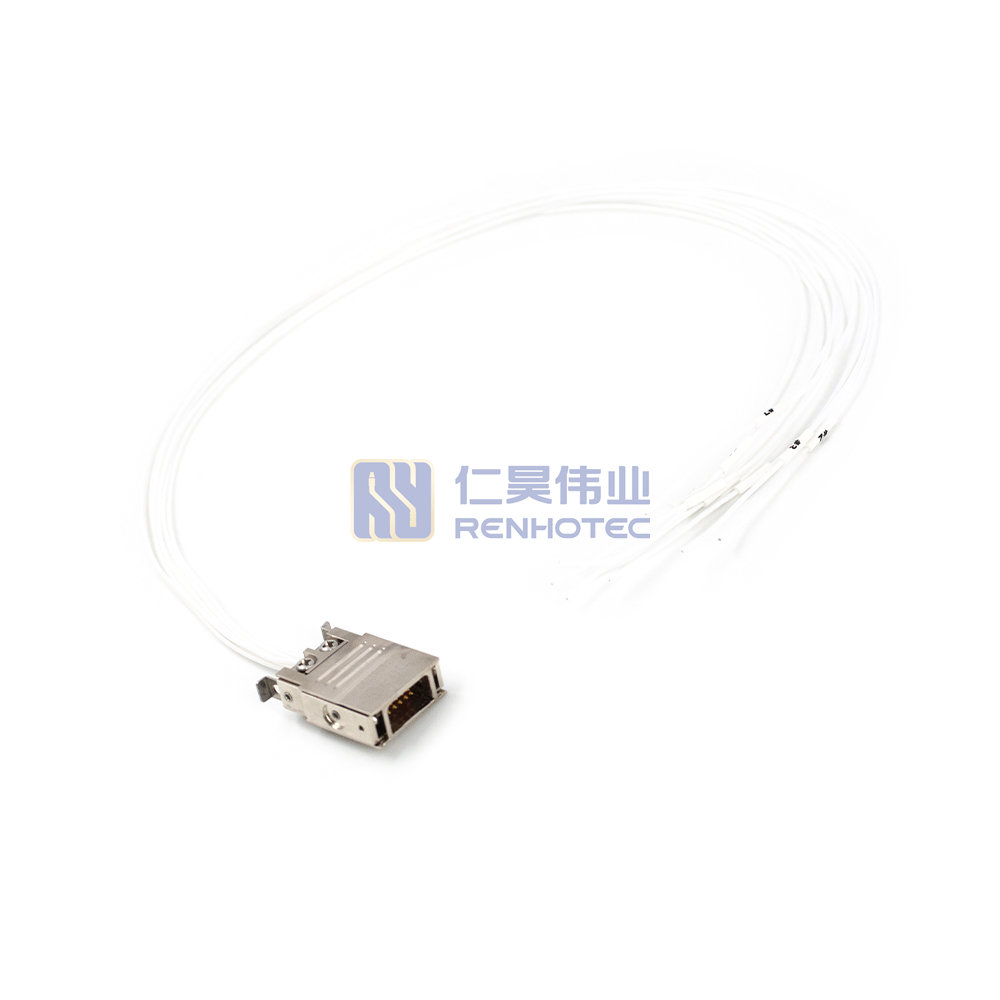

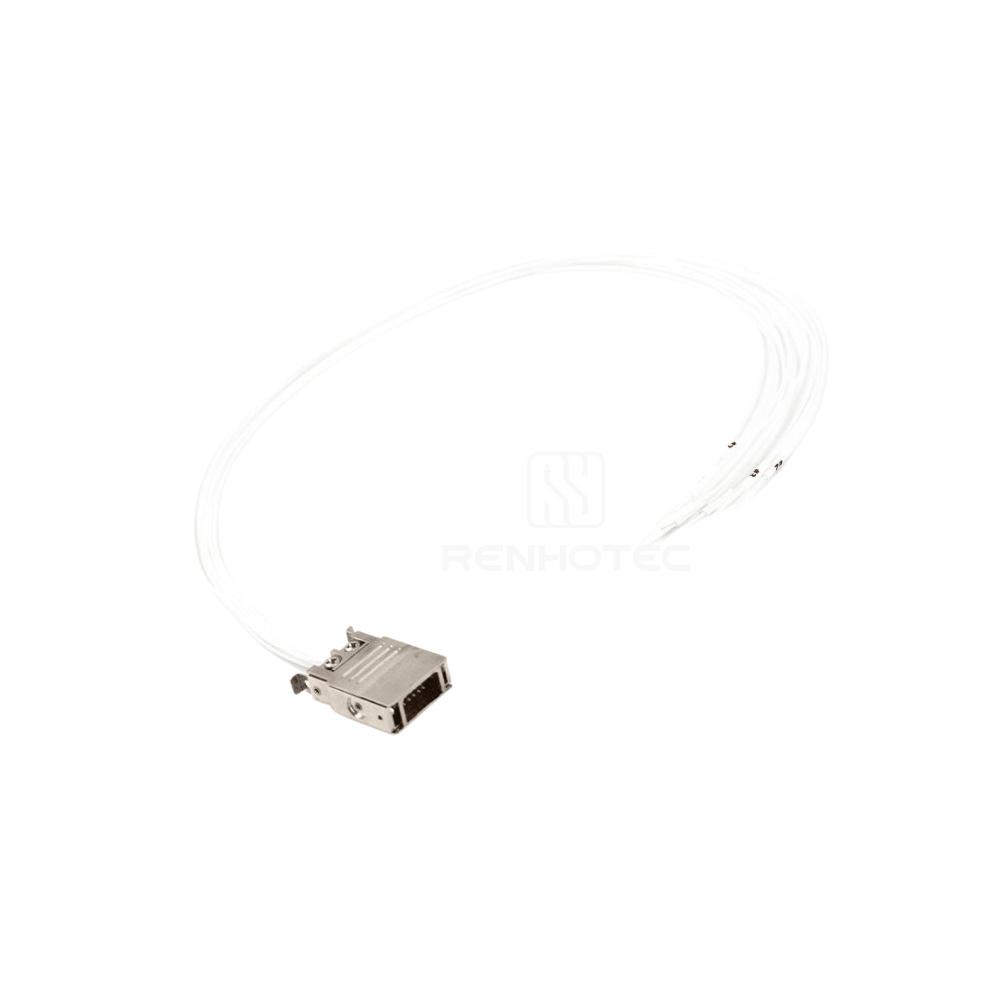

J14 Series J14F Metal Shell 9pin Micro-D MIL-Spec Male Plug with Cable, L=30cm J14F-9TJ-30

Part NO.: J14F-9TJ-30 Categories: ,
  • Designed for reliable connectivity.
  • Male plug provides excellent protection.
  • With 9 precision-engineered pins.
  • Attached 30cm cable enhances installation flexibility.
  • Complying with strict military specifications.
Get A Quotation

Product Example

A rectangular connector usually consists of two parts: a plug and a socket.Both plugs and sockets include many small and precise pins or pins that match the holes on the corresponding sockets or plugs to achieve electrical connection.

Product Description

Highly reliable J14B series is extended from J14 series, designed as crimp contact and higher density of contact for low-frequency electrical connections.Conform to Chinese harsh environment connector standard GJB142A-94, equivalent to MIL-C-24308A.2.It is mainly suitable for medical devices, space satellite systems, launch vehicles, Industrial facilities, and can also be widely used in various electronic instruments, meters and cable connections.

Performance

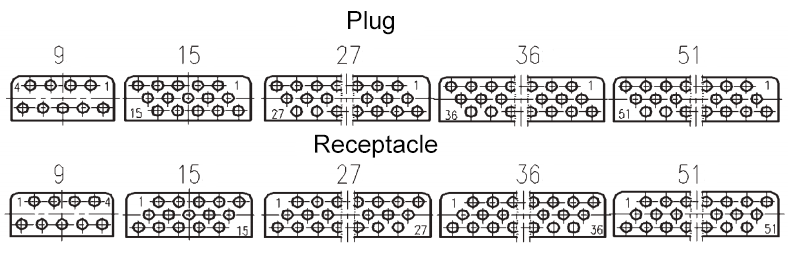

Contact Layout

Application

Aerospace

In the electrical systems of spacecraft and aircraft, rectangular connectors are used to connect various electronic components such as sensors, control units and power systems.

Harsh Environment

Equipment tested in various harsh environments, such as drought, extreme cold, extreme humidity, dust, etc., ensuring reliable connections for power and signals is critical.

harsh environment

Industry

Rectangular connectors are widely used in mechatronic equipment to provide reliable connections between electrical and mechanical parts and improve the overall performance of the equipment.

Medical

The rectangular connector is suitable for medical instruments such as monitors, diagnostic equipment and surgical equipment to ensure a stable electrical connection between devices.

Connector Type

Contact Type

Male

Number of Cores

9

Number of Interface Rows

2

Contact Spacing

Mounting Type

Cable Mount

Contact Termination

Crimp

Wire Length

30cm

Wire Gauge

0.1mm²~0.15mm²

Color

Primary Color

Housing Material

Aluminum Alloy

Housing Plating

Nickel-plated

Contacts Plating

Gold-plated

Rated Current

Withstand Dielectric Voltage

500V

Contact Resistance

≤10MΩ

Insulation Resistance

Operating Temperature

-55℃~125℃

Orientation

Relative Humidity

40℃±2℃,90%~95%

Atmospheric Pressure

101.3kpa~4.39kpa

Shock

980m/s²

Acceleration

780m/s²

Mating Cycles

≥500

Vibration

10Hz~2000Hz,196m/s²
