Product Example
A micro rectangular connector usually consists of two parts: a plug and a socket.Both plugs and sockets include many small and precise pins or pins that match the holes on the corresponding sockets or plugs to achieve electrical connection.
Product Description

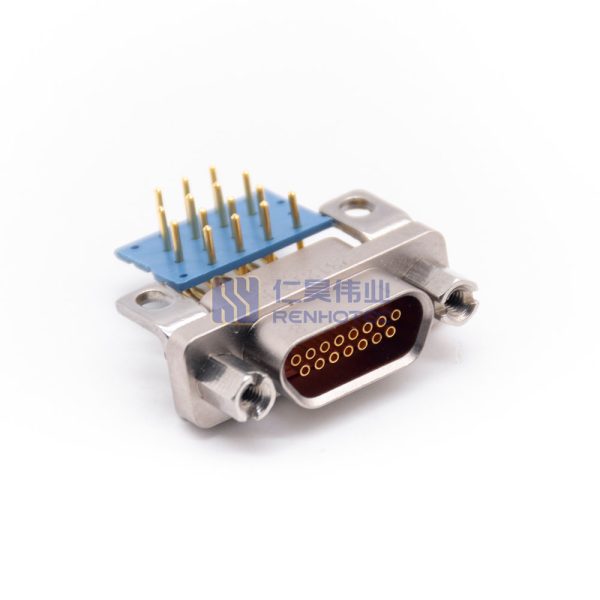

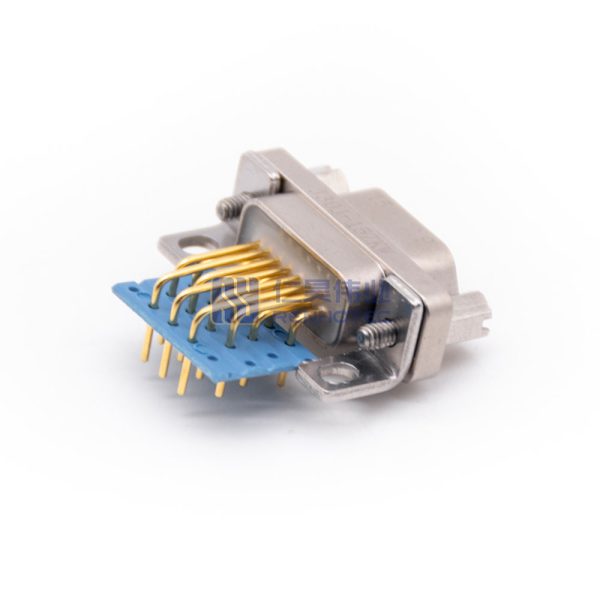

- J30J Miniature Rectangular Electronic Connector Series Micro D Connector is a small electrical connector . This product performance comply with GJB2446( general specification for micro-miniature polarized shell rectangular electrical connectors), it is equivalent MIL-DTL-83513, it is divided to common(shell) and improved(shell) .With the small install space, light weight , reliable connect, excellent electromagnetic scree,good earthquake resistance, etc. It is widely used in small space required electronic equipment and apparatus.
- 1. This series is equivalent to USA MDM series;
2. Various Types: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100;
3. Mated wire section area: 0.1~0.15 mm2;
4. This series employs high-density flexible pins;
5. Meeting the requirements of GJB2446 ↗Polarized shell, micro miniature rectangular electrical connector general
specification∫ (equivalent to MIL-C-83513);
6. The locking subassemblies are offered with the connectors according to your order.
Please give me information in the papers, if you do not need the locking subassemblies.
Application
Aerospace
In the electrical systems of spacecraft and aircraft, J30J connectors are used to connect various electronic components such as sensors, control units and power systems.
Harsh Environment
Equipment tested in various harsh environments, such as drought, extreme cold, extreme humidity, dust, etc., ensuring reliable connections for power and signals is critical.
Industry
J30J connectors are widely used in mechatronic equipment to provide reliable connections between electrical and mechanical parts and improve the overall performance of the equipment.
