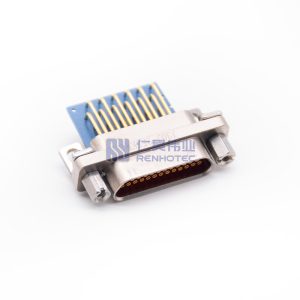

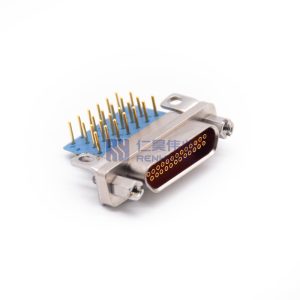

J30J Metal Shell 25pin 90-Degree PCB Micro-D MIL-Spec Female Connector with 4 Row SMT RHT-J30J-25ZKW

Part NO.: RHT-J30J-25ZKW Categories: , Tags: , , , ,
  • A high-quality connector engineered for demanding environments.
  • Features a compact 25-pin configuration arranged in a 4-row layout, facilitating efficient space utilization on printed circuit boards (PCBs). ,
  • The metal shell provides enhanced durability and effective electromagnetic shielding.
  • The 90-degree orientation allows for easy installation in tight spaces, ensuring secure and reliable connections in demanding environments.
Get A Quotation

Product Example

A micro rectangular connector usually consists of two parts: a plug and a socket.Both plugs and sockets include many small and precise pins or pins that match the holes on the corresponding sockets or plugs to achieve electrical connection.

Product Description

  • J30J Miniature Rectangular Electronic Connector Series Micro D Connector is a small electrical connector . This product performance comply with GJB2446( general specification for micro-miniature polarized shell rectangular electrical connectors), it is equivalent MIL-DTL-83513, it is divided to common(shell) and improved(shell) .With the small install space, light weight , reliable connect, excellent electromagnetic scree,good earthquake resistance, etc. It is widely used in small space required electronic equipment and apparatus.
  • 1. This series is equivalent to USA MDM series;
    2. Various Types: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100;
    3. Mated wire section area: 0.1~0.15 mm2;
    4. This series employs high-density flexible pins;
    5. Meeting the requirements of GJB2446 ↗Polarized shell, micro miniature rectangular electrical connector general
    specification∫ (equivalent to MIL-C-83513);
    6. The locking subassemblies are offered with the connectors according to your order.

Please give me information in the papers, if you do not need the locking subassemblies.

Application

Aerospace

In the electrical systems of spacecraft and aircraft, J30J connectors are used to connect various electronic components such as sensors, control units and power systems.

Harsh Environment

Equipment tested in various harsh environments, such as drought, extreme cold, extreme humidity, dust, etc., ensuring reliable connections for power and signals is critical.

harsh environment

Industry

J30J connectors are widely used in mechatronic equipment to provide reliable connections between electrical and mechanical parts and improve the overall performance of the equipment.

Medical

The J30J connector is suitable for medical instruments such as monitors, diagnostic equipment and surgical equipment to ensure a stable electrical connection between devices.

Product Type

Connector Type

Mounting Type

Panel Mount

Wire Length

/

Wire Gauge

/

Color

Primary Color

Connector Type

Mounting Type

Panel Mount

Wire Length

/

Wire Gauge

/

Color

Primary Color

Contact Type

Contact Type

Female

Number of Cores

25

Number of Interface Rows

2

Contact Spacing

1.27mm

Contact Termination

Solder

Housing Material

Aluminum Alloy

Housing Plating

Nickel-plated

Contacts Plating

Gold-plated

Contact Type

Female

Number of Cores

25

Number of Interface Rows

2

Contact Spacing

1.27mm

Contact Termination

Solder

Housing Material

Aluminum Alloy

Housing Plating

Nickel-plated

Contacts Plating

Gold-plated

Electrical Characteristics

Rated Current

Withstand Dielectric Voltage

800V

Contact Resistance

≤ 10MΩ

Insulation Resistance

Rated Current

Withstand Dielectric Voltage

800V

Contact Resistance

≤ 10MΩ

Insulation Resistance

Environmental Characteristics

Operating Temperature

-55℃~125℃

Operating Temperature

-55℃~125℃

Connector Type

Contact Type

Female

Number of Cores

25

Number of Interface Rows

2

Contact Spacing

1.27mm

Mounting Type

Panel Mount

Contact Termination

Solder

Wire Length

/

Wire Gauge

/

Color

Primary Color

Housing Material

Aluminum Alloy

Housing Plating

Nickel-plated

Contacts Plating

Gold-plated

Rated Current

Withstand Dielectric Voltage

800V

Contact Resistance

≤ 10MΩ

Insulation Resistance

Operating Temperature

-55℃~125℃



J30J X – X – TJ/ZK X X – X X
① ② ③ ④ ⑤ ⑥ ⑦ ⑧



①Main code:
J30J series
②Variations:
No designator-basic type,
C-The outer material is tin phosphor copper and plating nickel,
D-Mounting hole changed for M2-6H,
M-Sealed with glue
③Number of contacts:
9, 15, 21, 25, 31, 37, 51, 66, 74, 100
④Connector and contact type:
TJ- plug with pins,
ZK- Receptacle with socket,
TJ/ZK is fixation combination
⑤Type of contact terminal:
Null-Crimp,
S-Solder,
N-Straight inserting PCB,
W-Right angle inserting PCB
⑥Type of locking subassemblies:
Check More details in J30J Locking Subassemblies
⑦Finishing:
Null- Shell plated with nickel,
G- Shell plated with cadmium
⑧Improved type:
A-Shell with shielding braid cable clipper,
C-Suitable for contact and wire is right angle,
D-There is spinning-resistance groove in the interface terminal of the receptacle shell flange,
AD-The combination of variation A and D,
J-The grid of PCB is 1.27×2.54 (row*line),
Q-The shell flange is widened.
