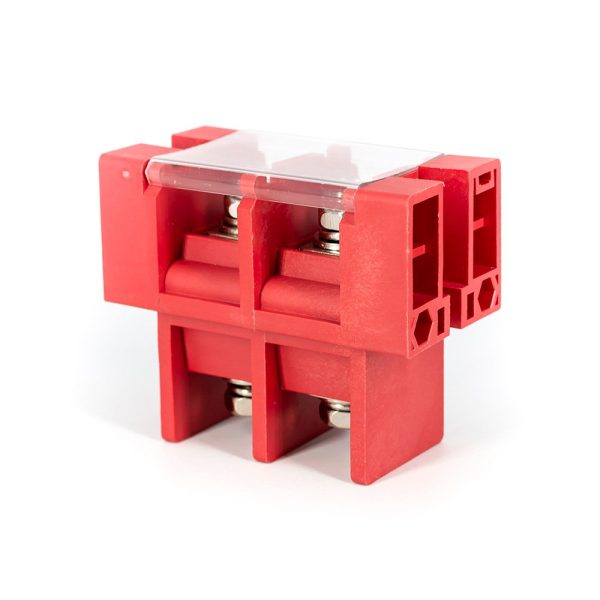

Panel Feed Through Terminal Block 2 Pin 200A 600V 80mm²

Part NO.: RHT-PG80-00-27.0-02P-C-200A Category: Tags: , , , ,
  • Pure Copper Thickened Conductor
  • Flame Retardant V0 Shell
  • Load Stability
  • Thickening Electroplating
Get A Quotation

Product Type

Orientation

Number of Input Positions

2

Number of Output Positions

2

Color

Black, Red

Mounting Type

Panel Mount

Docking Method

Thread

Terminal Block Type

Bulkhead Terminal Block

Top Termination

Screw with Fastening Plate

Bottom Termination

Screw

Terminal Material

Cooper

Insulation Material

PBT

Pitch

27mm

Wire Gauge

80m㎡

Orientation

Number of Input Positions

2

Number of Output Positions

2

Color

Black, Red

Mounting Type

Panel Mount

Docking Method

Thread

Terminal Block Type

Bulkhead Terminal Block

Top Termination

Screw with Fastening Plate

Bottom Termination

Screw

Terminal Material

Cooper

Insulation Material

PBT

Pitch

27mm

Wire Gauge

80m㎡

Electrical Characteristics

Rated Current

Rated Voltage

600V

Withstand Voltage Value

AC 3000V

Insulation Resistance

Rated Current

Rated Voltage

600V

Withstand Voltage Value

AC 3000V

Insulation Resistance

Environmental Characteristics

Operating Temperature

-40℃~105℃

Relative Humidity

5% to 95%

Flammability

V0

Operating Temperature

-40℃~105℃

Relative Humidity

5% to 95%

Flammability

V0

The Feed Through Terminal Block is handy for connecting wires. It is actually a piece of metal enclosed in insulating plastic. There are holes at both ends to insert wires, and there are screws for fastening or loosening.

Panel Feed Through Terminal Block

The purpose is to realize electrical connections and make wire connections easier. It can realize a safe, reliable, and effective connection, especially in high current and high voltage environments.

Panel Feed Through Terminal

Panel Feed Through Terminal Drawing

Panel Feed Through Terminal Block Drawing





[pdfjs-viewer url="https://www.renhotecev.com/wp-content/uploads/2022/04/PG80-27.0-02P-C-200A-En.pdf" attachment_id="10498" viewer_width=100% viewer_height=800px fullscreen=true download=true print=true]
