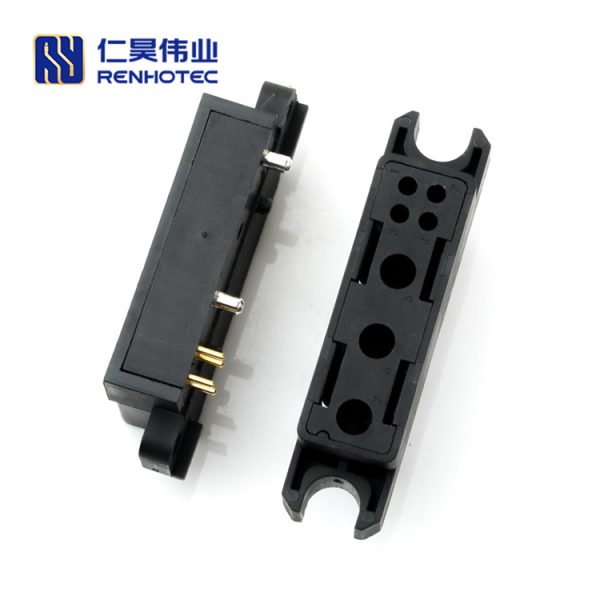

RHT-07 Power Drawer Connector High Current Heavy Load 4 Pin 35A
- Reliable Connection, Soft Insertion.
- Removal, Low Insertion Force.
- Low Contact Resistance.
- High Load Current.
- Excellent Performance.
Описание
Drawer Connector is modular power interconnects for designers of power systems and electrical hardware. Drawer Connectors feature a modular tooling platform that provides a wide variety of possible configurations. A single housing can have up to 10 modules. These connectors also have the flexibility to use one of five different contact types in each module. This flexibility helps designers find an ideal fit rather than using housings that are not a match.
Product dimension
Application
Attributes
Product Type
| Gender | |||
|---|---|---|---|
| Orientation | |||
| Number of Positions | |||
| Contact Quantity | 3Pin Power (12#:35A)+4Pin Signal (20#:5A) |
||
| Shell Material | PBT |
||
| Mounting Type | Panel Mount |
||
| Gender | Orientation | ||
| Number of Positions | Contact Quantity | 3Pin Power (12#:35A)+4Pin Signal (20#:5A) |
|
| Shell Material | PBT |
Mounting Type | Panel Mount |
Contact Type
| Contact Material | Copper, Copper Alloy |
||
|---|---|---|---|
| Contact Finish | Gold Plating, Silver Plating |
||
| Contact Termination | Crimp, Solder, Solder Cup |
||
| Contact Material | Copper, Copper Alloy |
Contact Finish | Gold Plating, Silver Plating |
| Contact Termination | Crimp, Solder, Solder Cup |
Electrical Characteristics
| Rated Current | |||
|---|---|---|---|
| Contact Resistance | ≤1.0MΩ |
||
| Insulation Resistance | |||
| Withstand Voltage | 3000V |
||
| Rated Current | Contact Resistance | ≤1.0MΩ |
|
| Insulation Resistance | Withstand Voltage | 3000V |
Mechanical Characteristics
| Mating Cycles | ≥1000 |
|---|---|
| Mating Cycles | ≥1000 |
Environmental Characteristics
| Operating Temperature | -40℃~125℃ |
|---|---|
| Operating Temperature | -40℃~125℃ |
| Gender | |
|---|---|
| Orientation | |
| Number of Positions | |
| Contact Quantity | 3Pin Power (12#:35A)+4Pin Signal (20#:5A) |
| Shell Material | PBT |
| Contact Material | Copper, Copper Alloy |
| Contact Finish | Gold Plating, Silver Plating |
| Rated Current | |
| Contact Resistance | ≤1.0MΩ |
| Contact Termination | Crimp, Solder, Solder Cup |
| Insulation Resistance | |
| Mating Cycles | ≥1000 |
| Mounting Type | Panel Mount |
| Withstand Voltage | 3000V |
| Operating Temperature | -40℃~125℃ |
