Product Type
| Gender | |||
|---|---|---|---|
| Orientation | |||
| Number of Positions | |||
| Contact Quantity | 4Pin Power (4#:125A)+6Pin Power (8#:75A)+24Pin Signal (20#:5A) |
||
| Mounting Type | Panel Mount |
||
| Shell Material | PBT |
||
| Gender | Orientation | ||
| Number of Positions | Contact Quantity | 4Pin Power (4#:125A)+6Pin Power (8#:75A)+24Pin Signal (20#:5A) |
|
| Mounting Type | Panel Mount |
Shell Material | PBT |
Electrical Characteristics
| Rated Current | |||
|---|---|---|---|
| Contact Resistance | ≤1.0MΩ |
||
| Insulation Resistance | |||
| Withstand Voltage | 2500V |
||
| Rated Current | Contact Resistance | ≤1.0MΩ |
|
| Insulation Resistance | Withstand Voltage | 2500V |
Contact Type
| Contact Material | Copper, Copper Alloy |
||
|---|---|---|---|
| Contact Finish | Gold Plating, Silver Plating |
||
| Contact Termination | Crimp, Solder |
||
| Contact Material | Copper, Copper Alloy |
Contact Finish | Gold Plating, Silver Plating |
| Contact Termination | Crimp, Solder |
Mechanical Characteristics
| Mating Cycles | ≥1000 |
|---|---|
| Mating Cycles | ≥1000 |
Environmental Characteristics
| Operating Temperature | -55℃~+125℃ |
|---|---|
| Operating Temperature | -55℃~+125℃ |

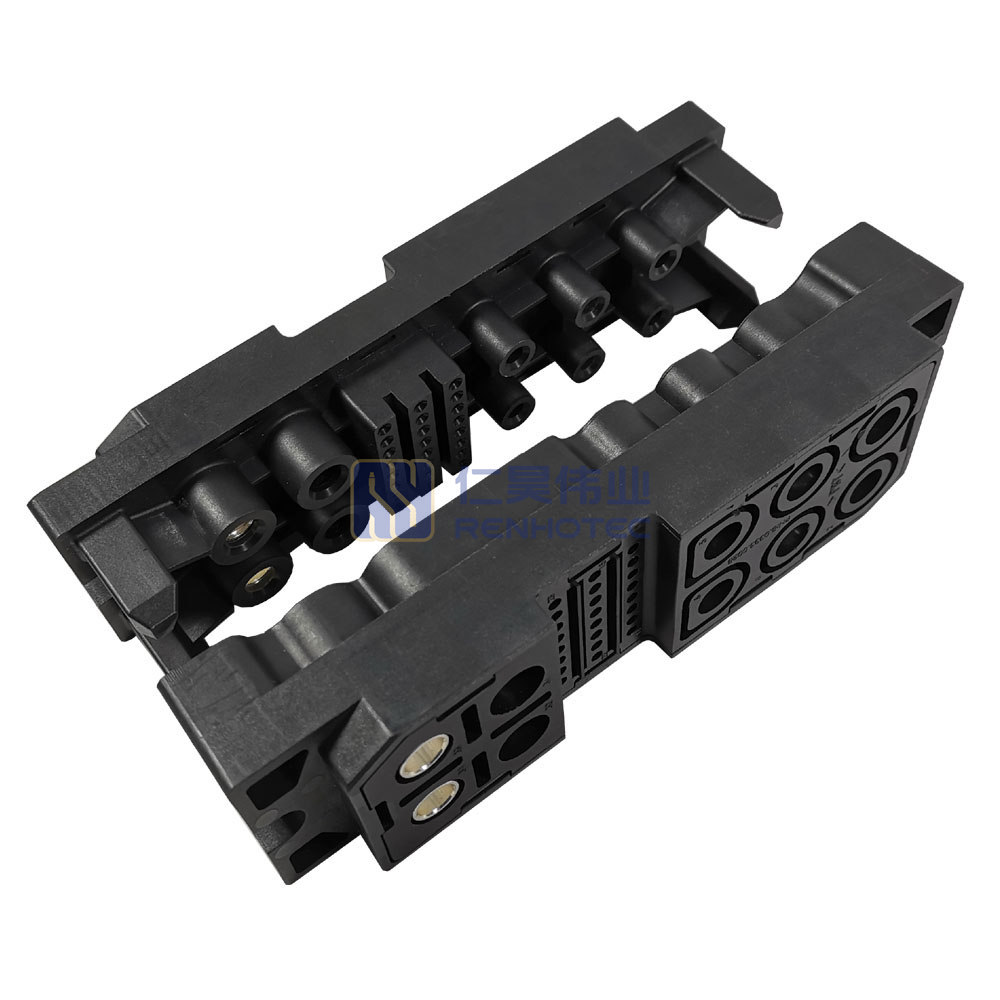

Drawer Connector is modular power interconnects for designers of power systems and electrical hardware. Drawer Connectors feature a modular tooling platform that provides a wide variety of possible configurations. A single housing can have up to 10 modules. These connectors also have the flexibility to use one of five different contact types in each module. This flexibility helps designers find an ideal fit rather than using housings that are not a match.
Product Drawing
Application
Drawer Connector is commonly used in office and home cabinets, industrial equipment and control cabinets, commercial display cabinets and cash registers, automotive interiors and logistics shelves, as well as electronic equipment chassis and instrument boxes. It realizes the stable connection between the drawer and the main structure, ensures its smooth opening and closing and functional realization, and meets the usage requirements in different scenarios.
