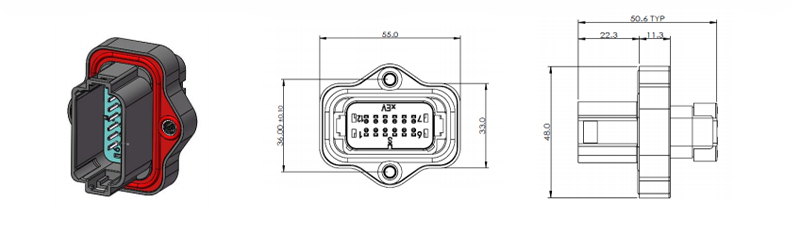

Product Type
| Series | XT12 Series |
||
|---|---|---|---|
| Connector Type | |||
| Orientation | |||
| Number of Positions | |||
| Mounting Feature | Flange |
||
| 2nd Lock Type | Lever |
||
| Shell Material | Plastic |
||
| Wire Range | 20-22AWG |
||
| Color | Black, Gray |
||
| Series | XT12 Series |
Connector Type | |
| Orientation | Number of Positions | ||
| Mounting Feature | Flange |
2nd Lock Type | Lever |
| Shell Material | Plastic |
Wire Range | 20-22AWG |
| Color | Black, Gray |
Electrical Characteristics
| Rated Current | |||
|---|---|---|---|
| Rated Voltage | 300V DC |
||
| Withstand Voltage | 3000V DC |
||
| Rated Current | Rated Voltage | 300V DC |
|
| Withstand Voltage | 3000V DC |
Mechanical Characteristics
| Mating Cycles | ≥100 |
|---|---|
| Mating Cycles | ≥100 |
Environmental Characteristics
| Ingress Protection | IP67 (Mated), IP6K9K (Mated) |
||
|---|---|---|---|
| Operating Temperature | -40℃~125℃ |
||
| Flammability | UL94 V-0, GB/T 2408-2008 |
||
| Ingress Protection | IP67 (Mated), IP6K9K (Mated) |
Operating Temperature | -40℃~125℃ |
| Flammability | UL94 V-0, GB/T 2408-2008 |
XT series signal connector has main shell made of engineering thermoplastics. The durable thermoplastic shells feature built-in contact sealing to eliminate individual wire-sealing grommets, while an integral interfacial seal protects mated connectors. XT Series™, rated at IP67/69K (mated), is perfectly suited to on and off highway applications, marine, industrial, and agriculture markets in harsh environments.
It is mainly used in electric vehicles to implement electrical signal transmission in signal control and communication systems such as battery packs, high-voltage power distribution boxes (PDU), motor control unit(MCU) and on-board control systems of the vehicle. It can work in the control system loop of -40℃ to 125℃ ambient temperature, rated current 5A-13A, and voltage 300V DC.
XT Series connectors are available in a variety of size and profile options to suit different installation spaces and requirements.
