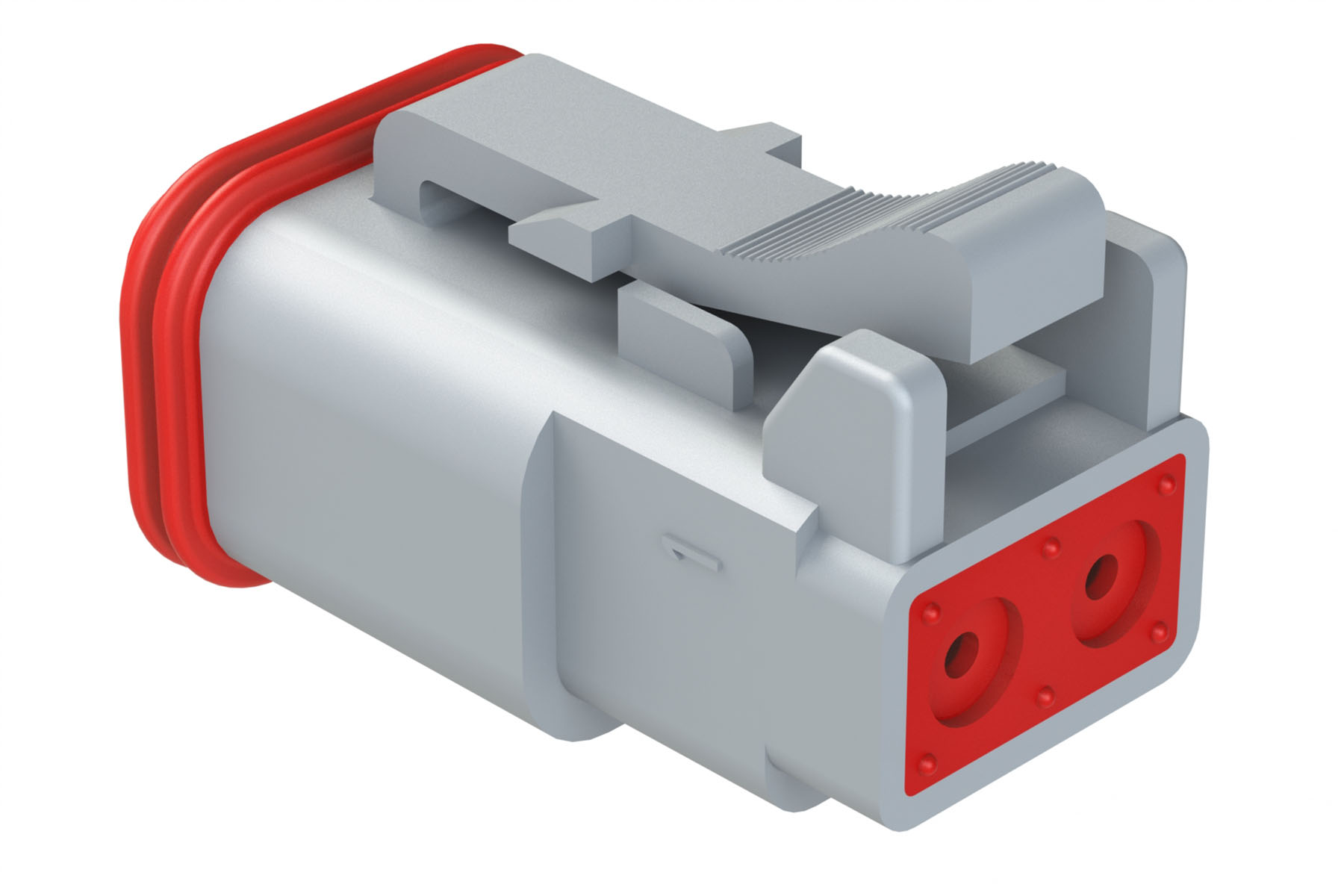

XT2 Plug Plastic Signal Connector

  • Protection Class IP67/69K ( Mated )
  • Suitable for Harsh Environments
  • High Temperature Resistant
  • High Level of Safety
  • Durable Thermoplastic Housing With Built-in Contact Sealing
Get A Quotation

Product Type

Series

XT2 Series

Connector Type

Orientation

Number of Positions

2nd Lock Type

Lever

Shell Material

Plastic

Wire Range

16-18AWG

Color

Black, Gray

Series

XT2 Series

Connector Type

Orientation

Number of Positions

2nd Lock Type

Lever

Shell Material

Plastic

Wire Range

16-18AWG

Color

Black, Gray

Electrical Characteristics

Rated Current

Rated Voltage

300V DC

Withstand Voltage

3000V DC

Rated Current

Rated Voltage

300V DC

Withstand Voltage

3000V DC

Mechanical Characteristics

Mating Cycles

≥100

Mating Cycles

≥100

Environmental Characteristics

Ingress Protection

IP67 (Mated), IP6K9K (Mated)

Operating Temperature

-40℃~125℃

Flammability

UL94 V-0, GB/T 2408-2008

Ingress Protection

IP67 (Mated), IP6K9K (Mated)

Operating Temperature

-40℃~125℃

Flammability

UL94 V-0, GB/T 2408-2008

XT series signal connector has main shell made of engineering thermoplastics. The durable thermoplastic shells feature built-in contact sealing to eliminate individual wire-sealing grommets, while an integral interfacial seal protects mated connectors. XT Series™, rated at IP67/69K (mated), is perfectly suited to on and off highway applications, marine, industrial, and agriculture markets in harsh environments.

XT series signal connector

It is mainly used in electric vehicles to implement electrical signal transmission in signal control and communication systems such as battery packs, high-voltage power distribution boxes (PDU), motor control unit(MCU) and on-board control systems of the vehicle. It can work in the control system loop of -40℃ to 125℃ ambient temperature, rated current 5A-13A, and voltage 300V DC.

XT18X-S2

XT Series connectors are available in a variety of size and profile options to suit different installation spaces and requirements.
